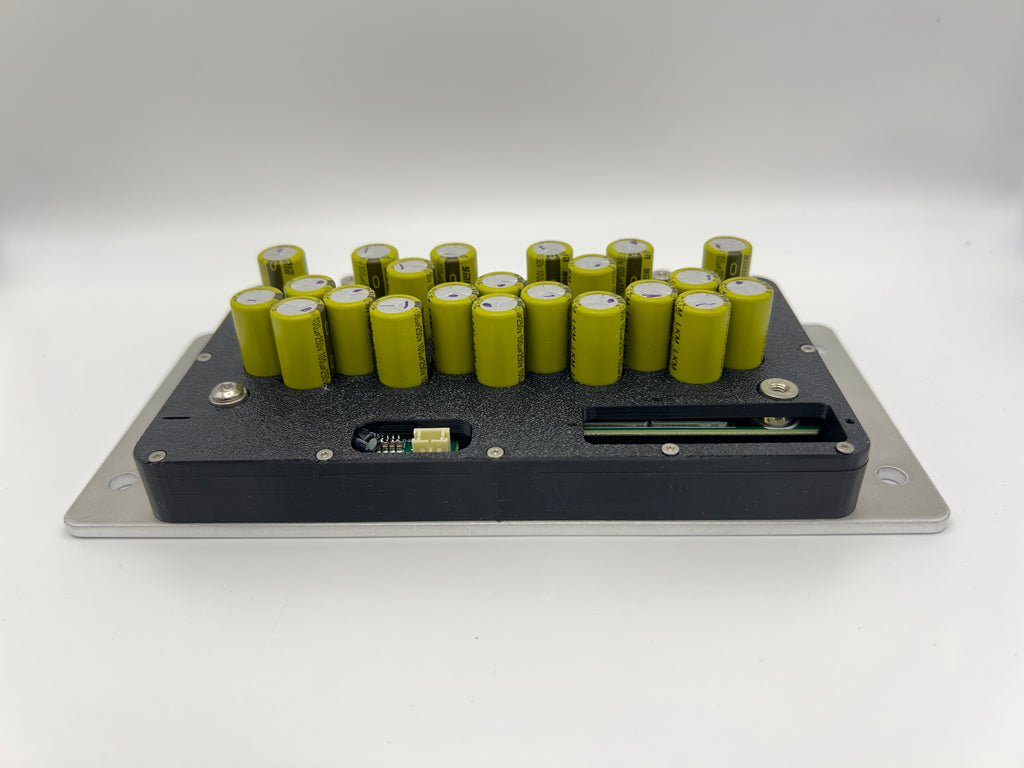

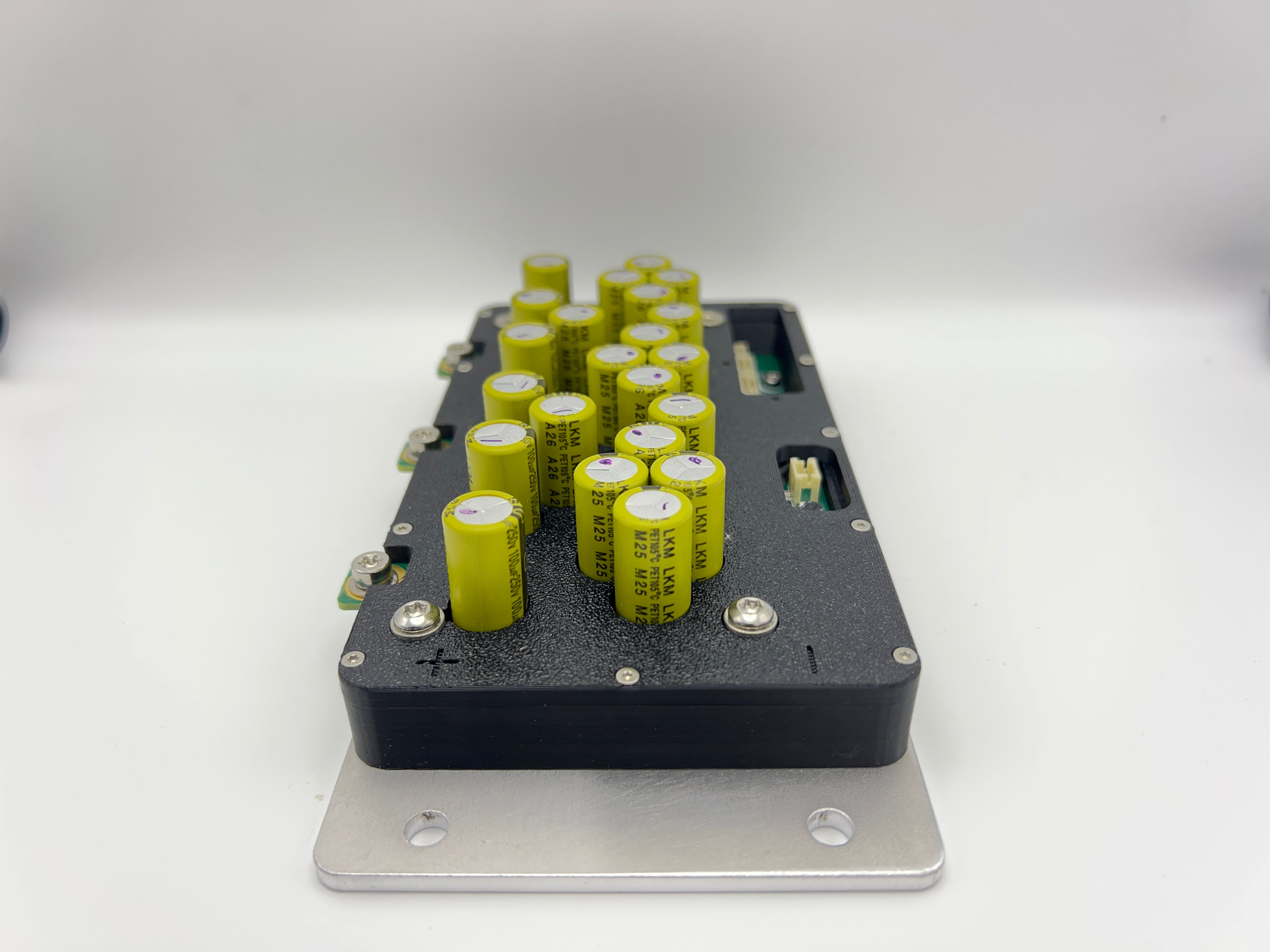

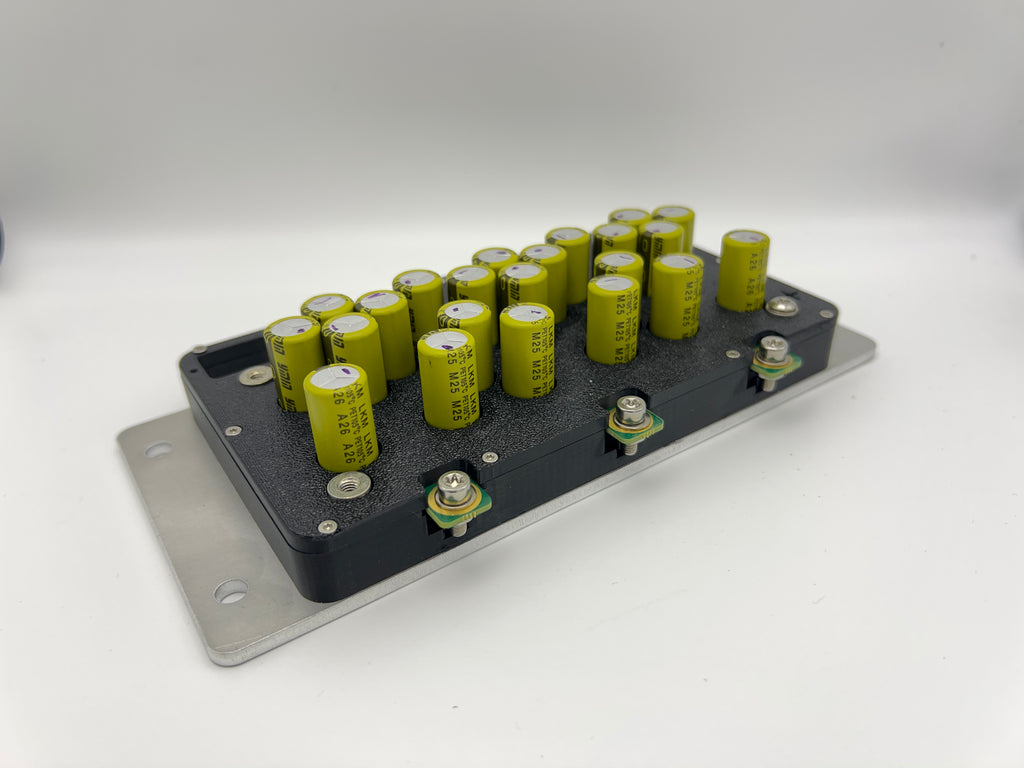

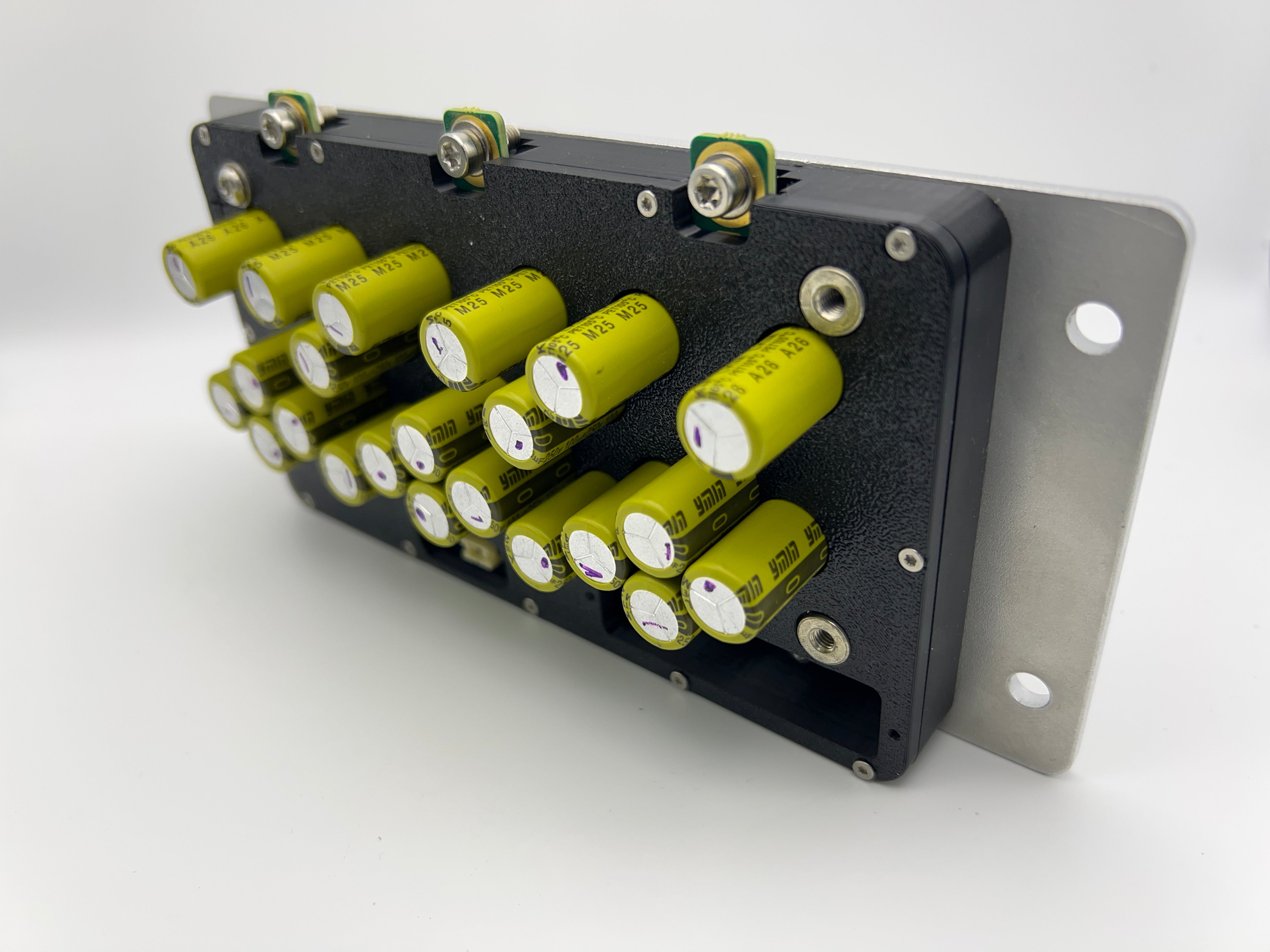

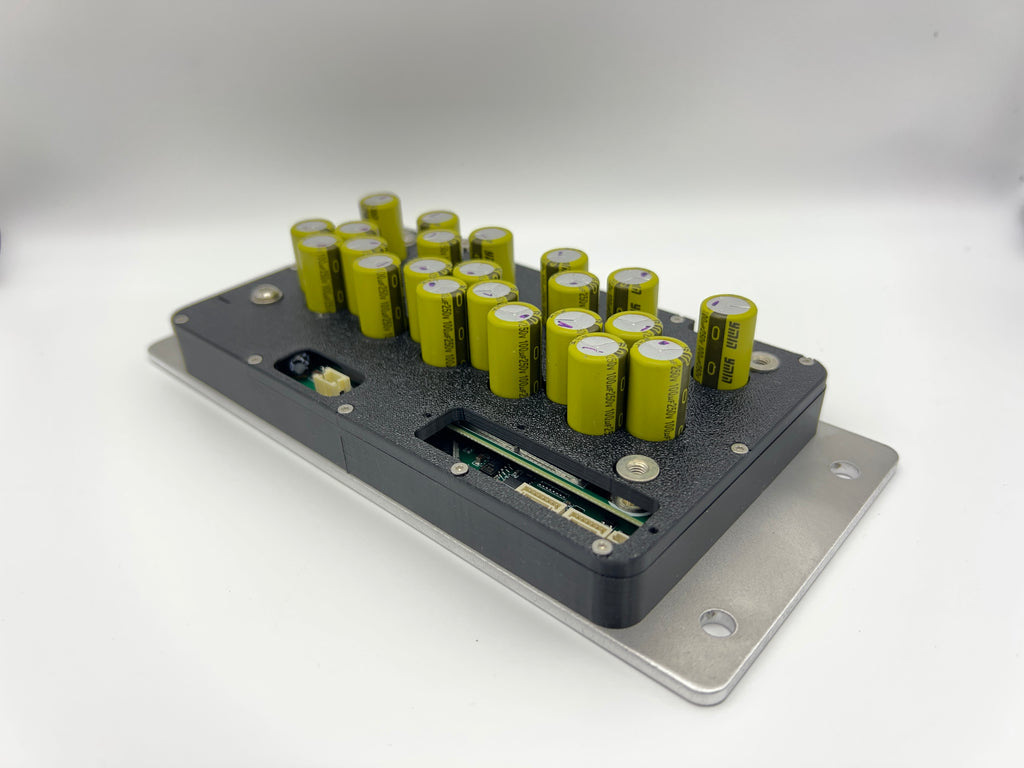

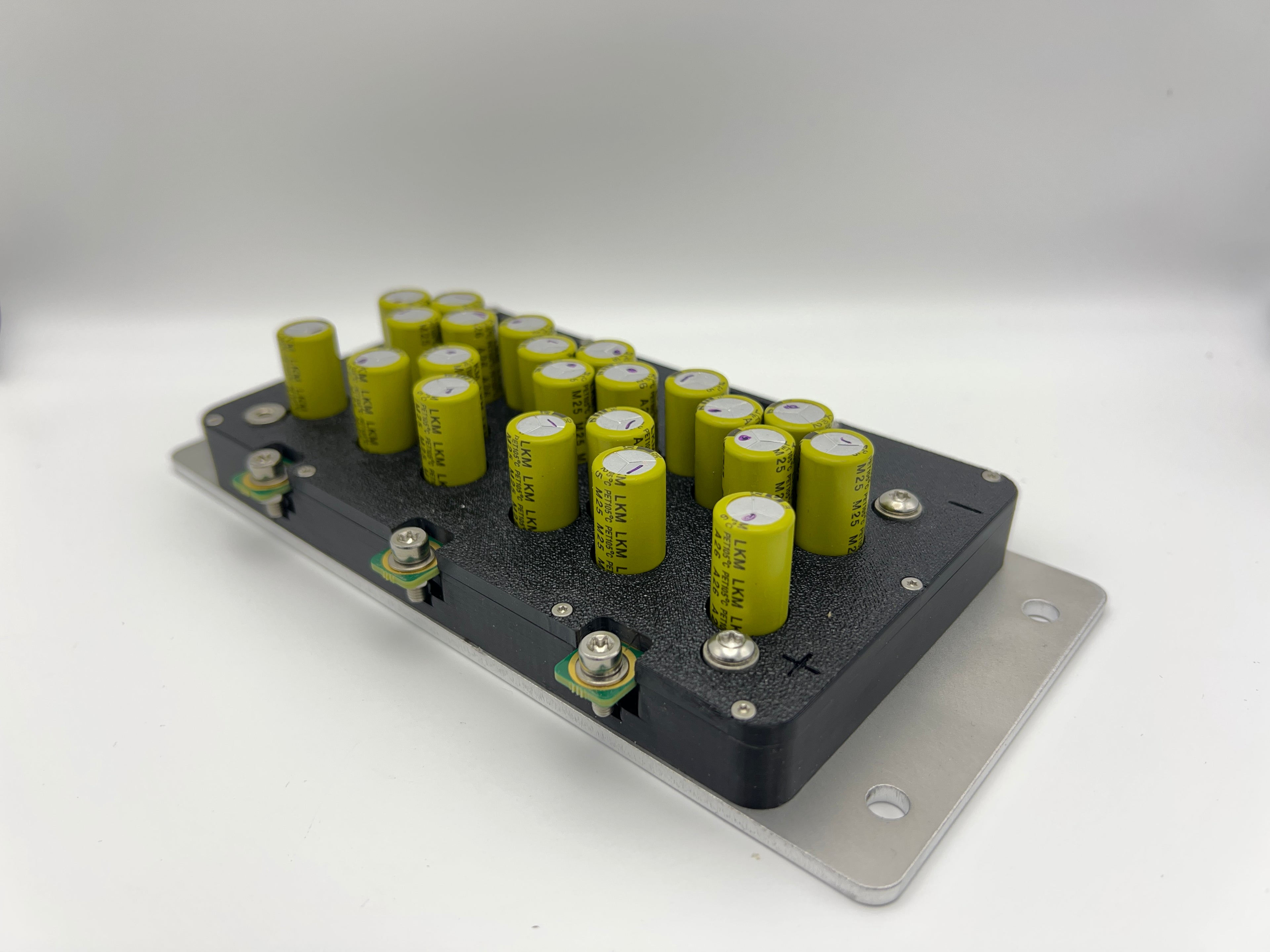

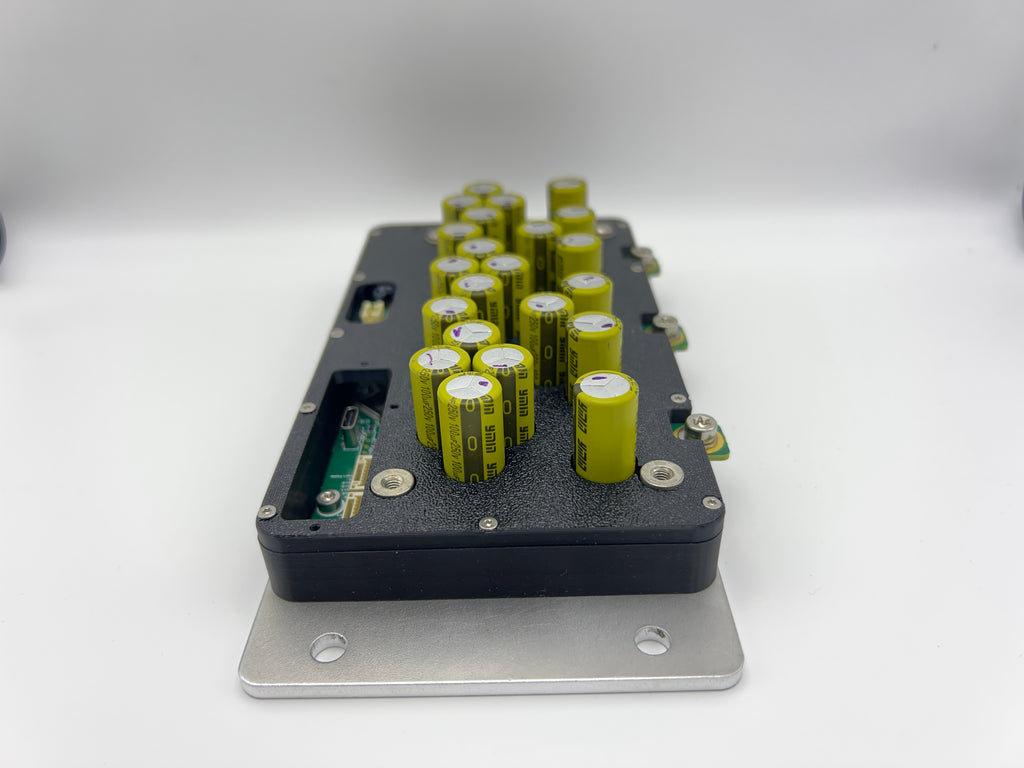

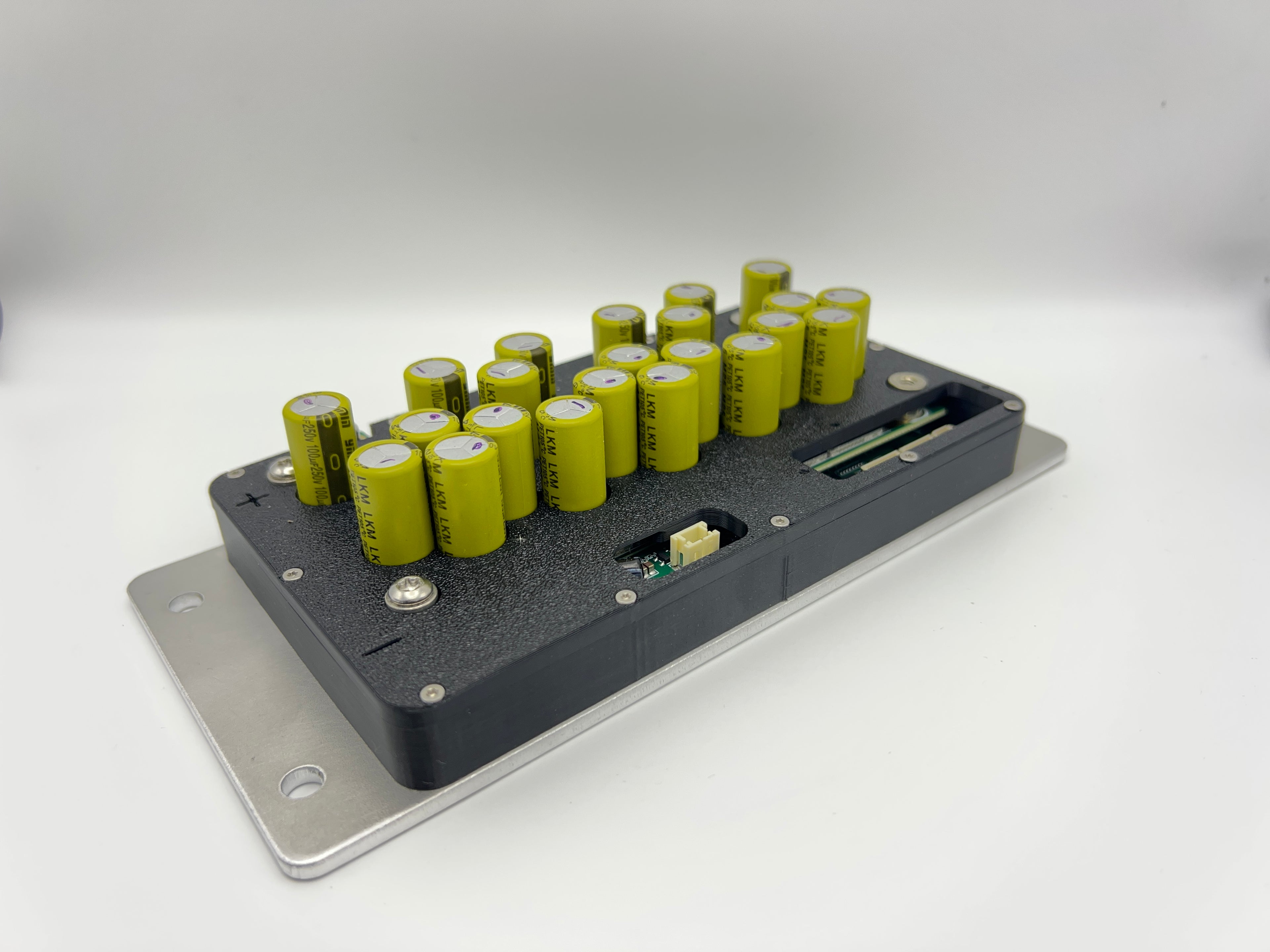

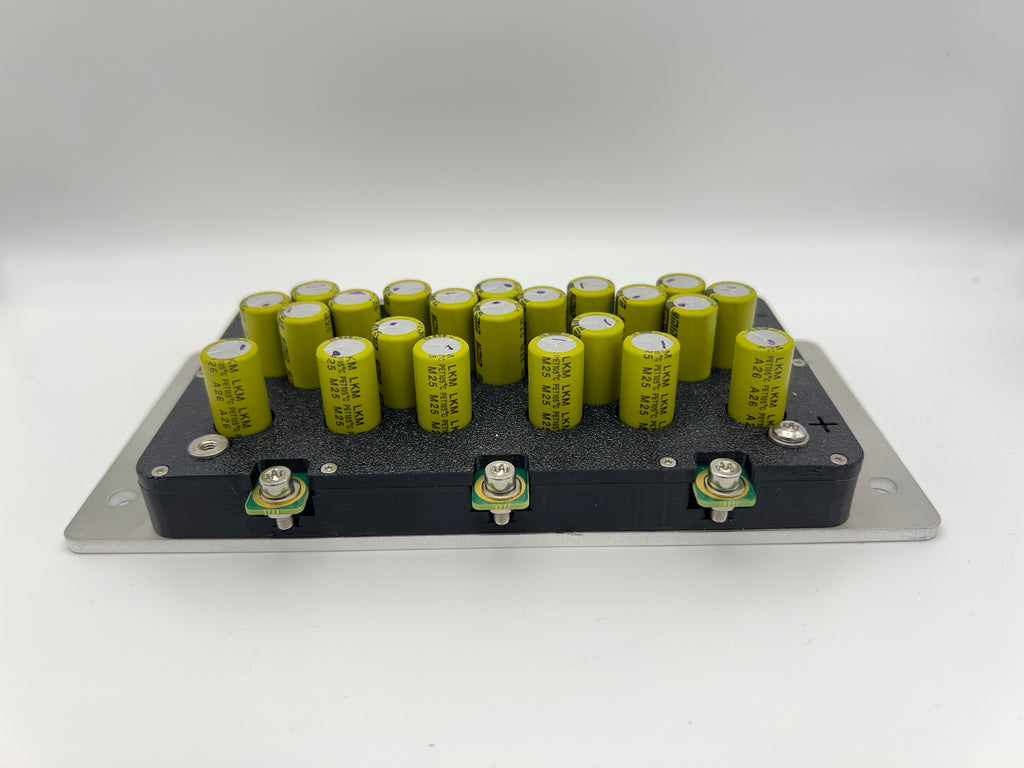

XL-Classic (85V)

€649,00 EUR

XL-Classic (85V)

Name: XL-Classic (85V)
Brand: DQ Drives
Price: 649.00 EUR
Availability: InStock

€649,00 EUR

€545,38 excl. VAT

As the strongest motor controller in our lineup, the XL features the highest current capability of the Classic Line all while remaining easy to cool from the underside.

The design of the XL is similar to all other controllers Classic-line:

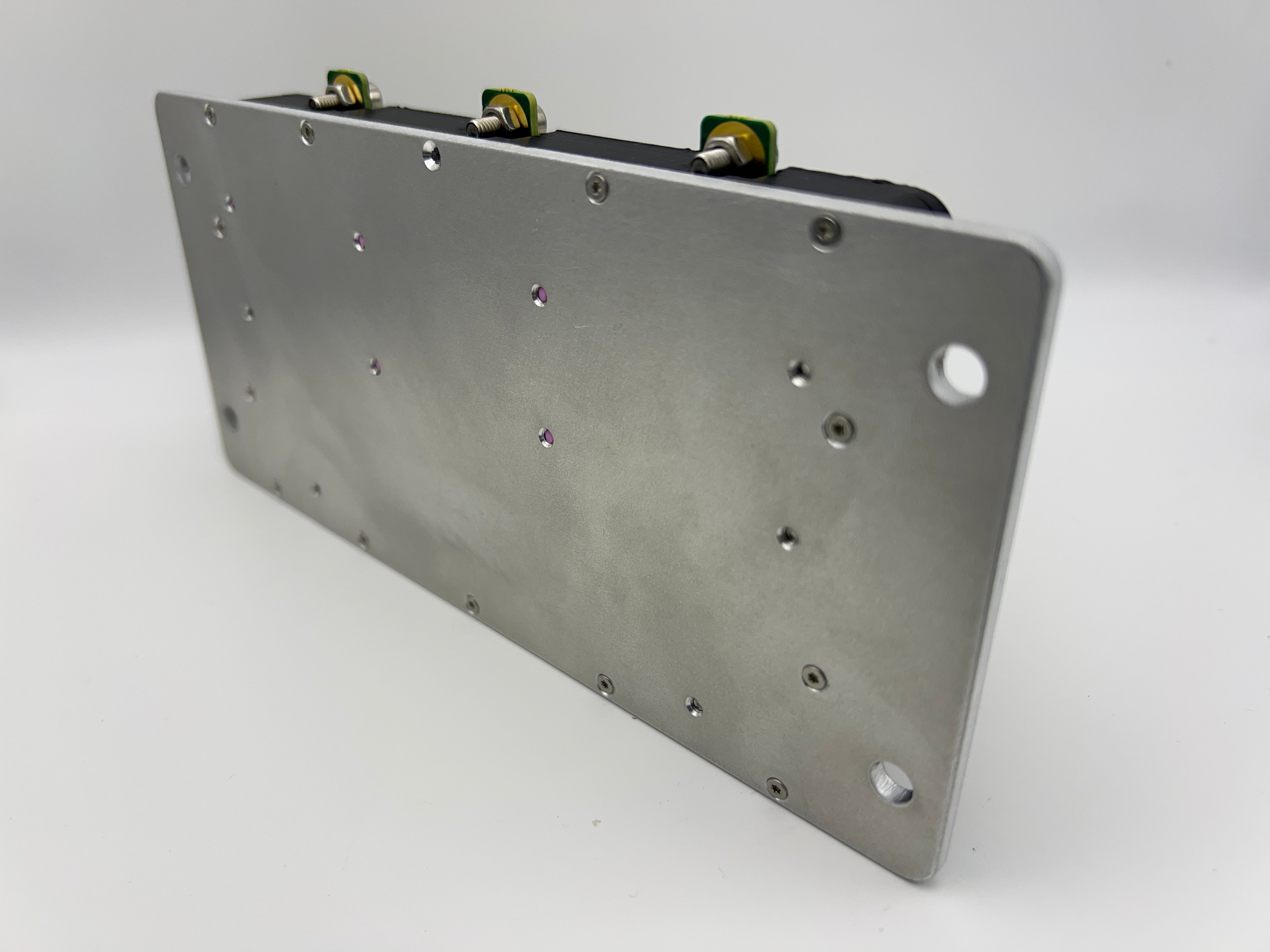

No components on the bottom side. This makes cooling a breeze.

Coming in above 1000A of motor current, the price-to-performance ratio of this controller is excellent!

5 left

Volume Pricing

For higher quantities, we grant volume discounts:

Quantity	Price each	Price each (net)
1+	€649,00	€545,38
10+	€549,00	€461,34
100+	€499,00	€419,33

Technical Information

What do these numbers mean?

Specification	Value
General Information
Dimensions [mm] Note: These are reference values. For systems integration, please download the 3D model	200 x 100 x 30
Weight [g]	600.0
Mounting Holes	6.5mm holes in Aluminium baseplate
Firmware	VESC®
Connectivity & Interfaces
Connectors	JST-SH, M4 Screw Terminals
Supported Sensors	Hall, ABI, SinCos, SPI
Logic & Control
Logic output voltage [V]	5.2
Logic supply current [A]	5.0
Electrical Parameters
Minimum input voltage [V]	20.0
Maximum input voltage [V]	85.0
Maximum battery current [A]	700.0
Maximum motor peak current [A]	1100.0
Maximum duty cycle [%]	97.0
Current sensor type	Low Side Shunts
