M-Classic
Classic-Line

M-Classic

€100,00 excl. VAT
€119,00 incl. 19 % VAT, plus shipping

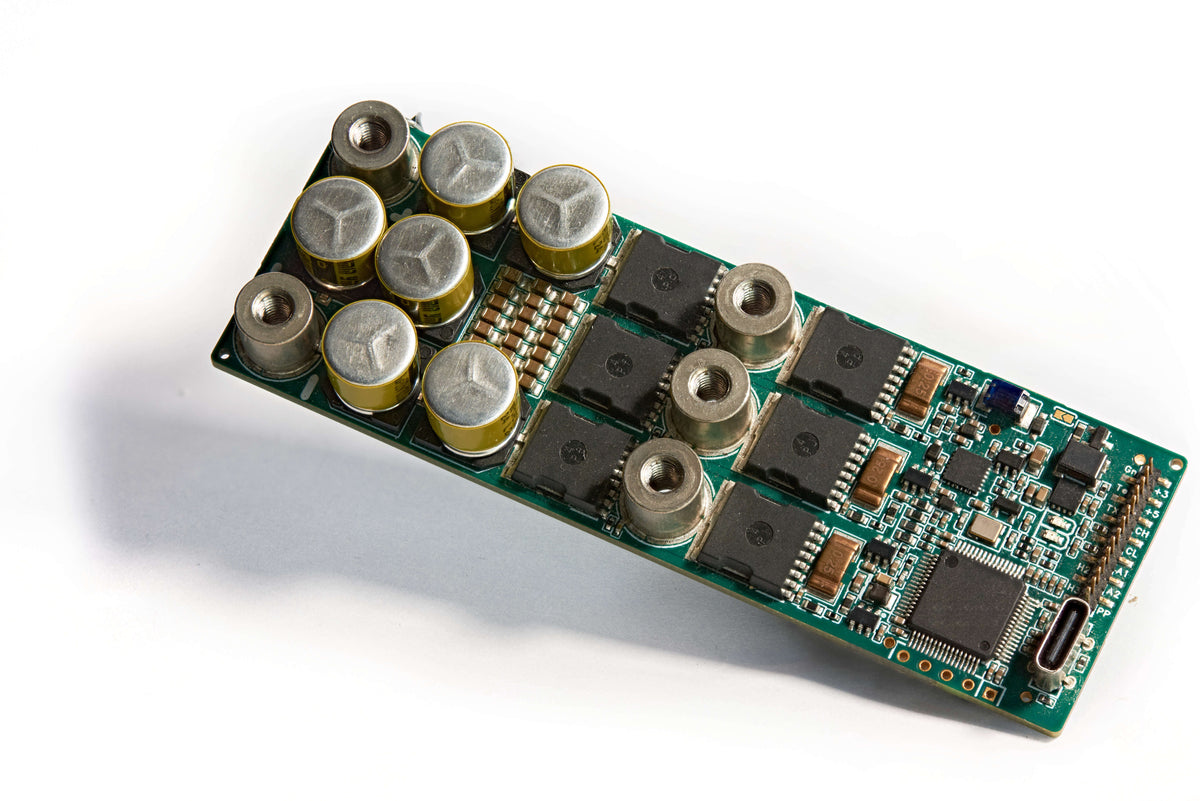

A budget-friendly motor controller that fulfils most needs and delivers solid performance.

The PCB has all components on only one side to enable easy mating against a cooling surface. This is even possible without a case.

For signal interfacing, either a breakout PCB or a custom plug board can be used (see Add-Ons).

If your project needs a custom signal interface board, feel free to contact us. Also, the pinout is provided in the product info sheet.

In stock, ships from Germany

Express checkout does not include add-ons. Use "Add to cart" to buy with add-ons.

Add-onsThese products complement the M-Classic.
M-Classic IO board with JST-GH
M-Classic IO board with JST-GH€2,00 incl. VAT
M-Classic IO board with solder pads
M-Classic IO board with solder pads€1,00 incl. VAT
M-Classic Phase Solder Board
M-Classic Phase Solder Board€1,00 incl. VAT
Volume pricingFor higher quantities, we grant volume discounts. Price per unit.
QuantityExcl. VATIncl. VAT
1+€100,00€119,00
10+€91,59€109,00
100+€86,55€103,00
Projects and series quantities

Price depends on quantity, firmware and adaptation. We usually reply within one business day.

Production: China.

Request a quote
Product info sheet (PDF)3D model (.step)

Technical information

Reference values. For system integration, please use the 3D model.

What do these numbers mean? →

Highlights

  • Good price to performance ratio
  • Supports all common VESC features
  • Easy connectivity with soldier breakout board
  • Easy single sided cooling
Power
Input voltage15 – 65 V
Battery cells (Li-ion)up to 15S
Battery current, max.140 A
Motor current, continuous120 A
Motor current, peak200 A
Duty cycle, max.95 %
Switching frequency5 to 20 kHz
Control & interfaces
FirmwareVESC®
InterfacesUSB, Serial, CAN, PPM, Analog, DroneCAN, I2C, SPIHow each interface works →
ConnectorsPinheader with solderpad breakout PCB (custom option available), M4 Screw Terminals
Motor sensorsSensorless, Hall, ABI, SinCos, SPIWhich sensor do I need? →
Current sensingLow Side Shunts
Auxiliary supply output5 V, max. 0.5 A
Mechanical & environment
Dimensions35 x 103 x 13 mmReference values. Use the 3D model for integration.
Weight80 g
MountingMounting via bracket
CoolingSingle-sided, via mounting bracket
Origin & compliance
Production siteChina
Component originChina

Peak current can be held for a limited time only. How long depends on your cooling; ask us for derating data.

How customers use it

The M-Classic is used in a variety of applications, mostly in small to medium sized ground vehicles.
This includes off-road buggies, e-bikes as well as a lot of other interesting projects.

Its most notable strength is the price-point. You get a lot of controller for not a lot of money with the M-Classic.

This makes it ideal for all kinds of projects where cost is a constraint and space/weight isn't too big of an issue.

3D model

A simplified model for integrating the M-Classic into your CAD assembly. Drag to rotate.

More from the Classic-Line

View all →

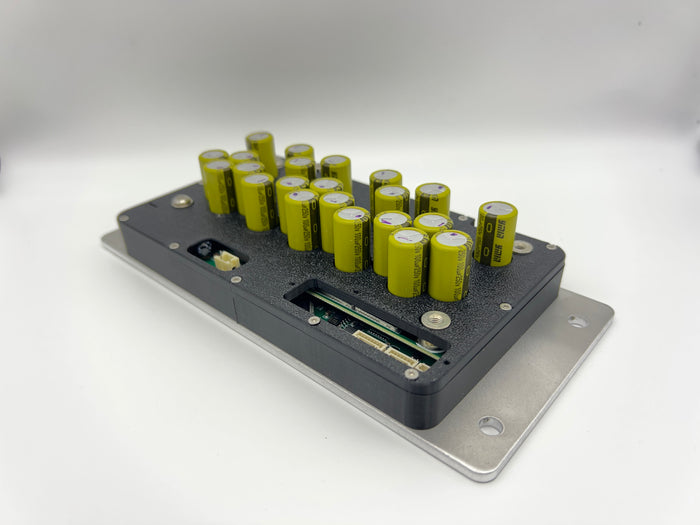

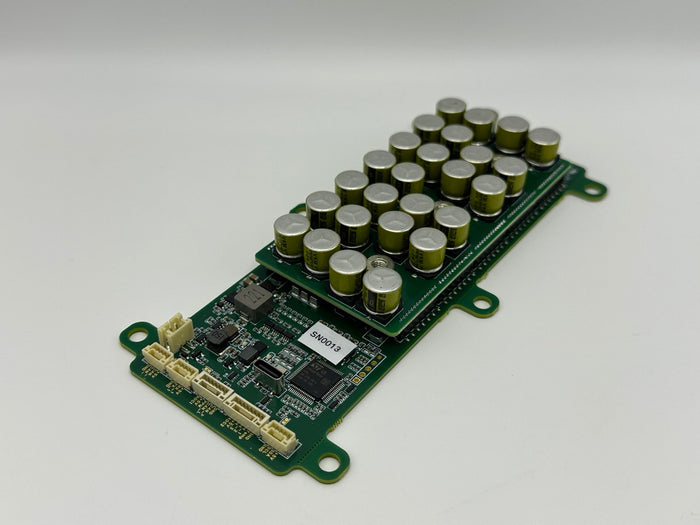

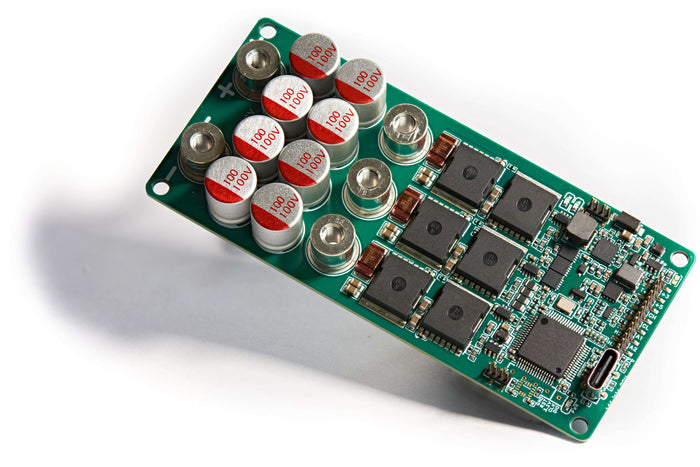

XL-Classic (85V) XL-Classic (85V)85 V max.1100 A peak600 g €545,37 excl. VAT €649,00 incl. VAT M-Neo M-Neo84 V max.200 A peak75 g €192,43 excl. VAT €229,00 incl. VAT L-Classic L-Classic84 V max.500 A peak150 g €293,27 excl. VAT €349,00 incl. VAT
