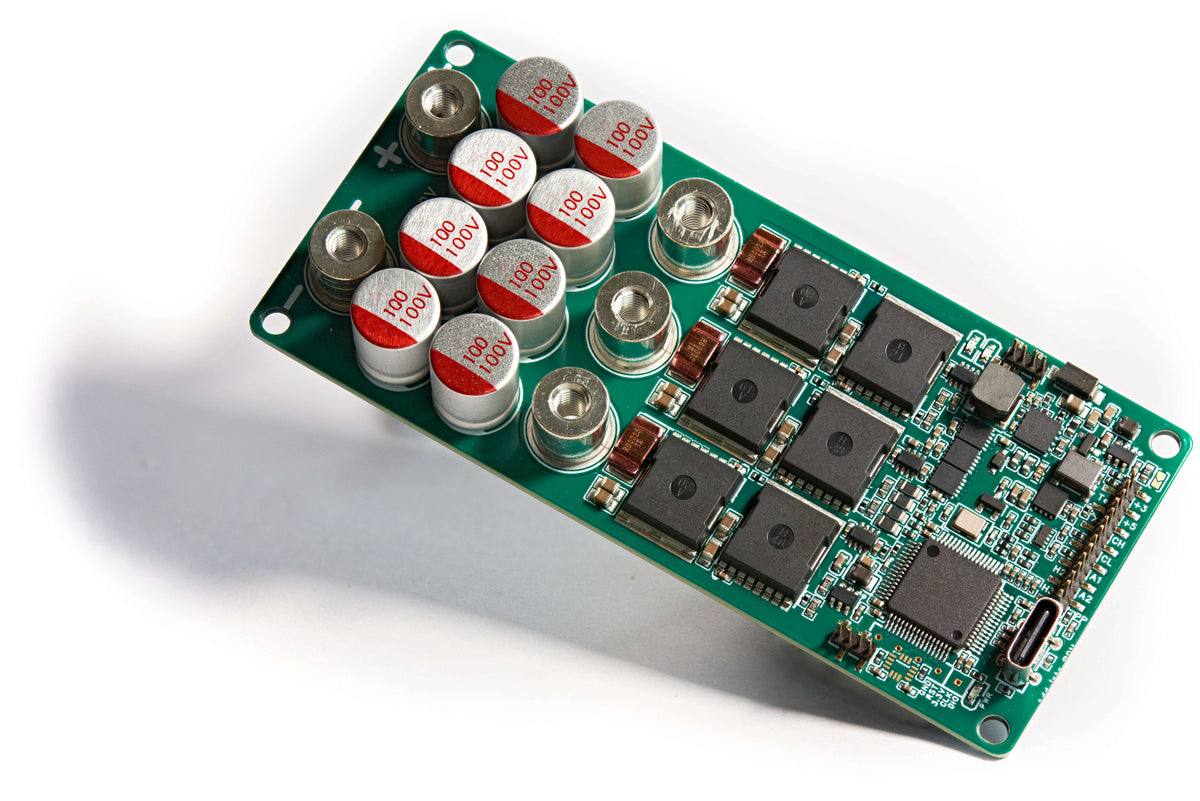

M-Neo
The enhanced version of the M-Classic.
It features the same core ideas as the M-Classic regarding one sided PCB and proven layout. These are enhanced with many additions like phase shunts, a higher maximum voltage, higher maximum current and only western components (NDAA compliant).
It is also noteworthy that the M-Neo has mounting holes in each corner to make mounting even easier. No support frame is needed. Have a look at the highlights to find out more!
For signal interfacing, either a breakout PCB or a custom plug board can be used (see Add-Ons).
If your project needs a custom signal interface board, feel free to contact us. Also, the pinout is provided in the product info sheet.
| Quantity | Excl. VAT | Incl. VAT |
|---|---|---|
| 1+ | €192,43 | €229,00 |
| 10+ | €167,22 | €199,00 |
| 100+ | €150,42 | €179,00 |
Price depends on quantity, production site, firmware and adaptation. We usually reply within one business day.
Production: EU with European components, or China. Your choice for series orders.
Request a quoteTechnical information
Reference values. For system integration, please use the 3D model.
What do these numbers mean? →Highlights
| Power | |
|---|---|
| Input voltage | 13 – 84 V |
| Battery cells (Li-ion) | up to 20S |
| Battery current, max. | 140 A |
| Motor current, peak | 200 A |
| Duty cycle, max. | 97 % |
| Switching frequency | 5 to 20 kHz |
| Control & interfaces | |
| Firmware | VESC® |
| Interfaces | USB, Serial, CAN, PPM, Analog, DroneCAN, I2C, SPIHow each interface works → |
| Connectors | JST-GH, M4 Screw Terminals, Solderpads (version dependent) |
| Motor sensors | Sensorless, Hall, ABI, SinCos, SPIWhich sensor do I need? → |
| Current sensing | Phase Shunts |
| Auxiliary supply output | 5 V, max. 0.5 A |
| Mechanical & environment | |
| Dimensions | 45 x 100 x 15 mmReference values. Use the 3D model for integration. |
| Weight | 75 g |
| Mounting | 4 x 3.2mm |
| Casing options | Plastic Case, Aluminium Case |
| Cooling | Customer mounted cold-plate |
| Origin & compliance | |
| Component origin | Western components (NDAA compliant) |
Peak current can be held for a limited time only. How long depends on your cooling; ask us for derating data.
How customers use it
3D model
A simplified model for integrating the M-Neo into your CAD assembly. Drag to rotate.
Planning a series or need a different version?
We size the controller with you, adapt it if needed and send a quote.
