M-Neo

$270.00 USD

M-Neo

Name: M-Neo
Brand: DQ Drives
Price: 270.00 USD
Availability: InStock

$270.00 USD

Taxes included.

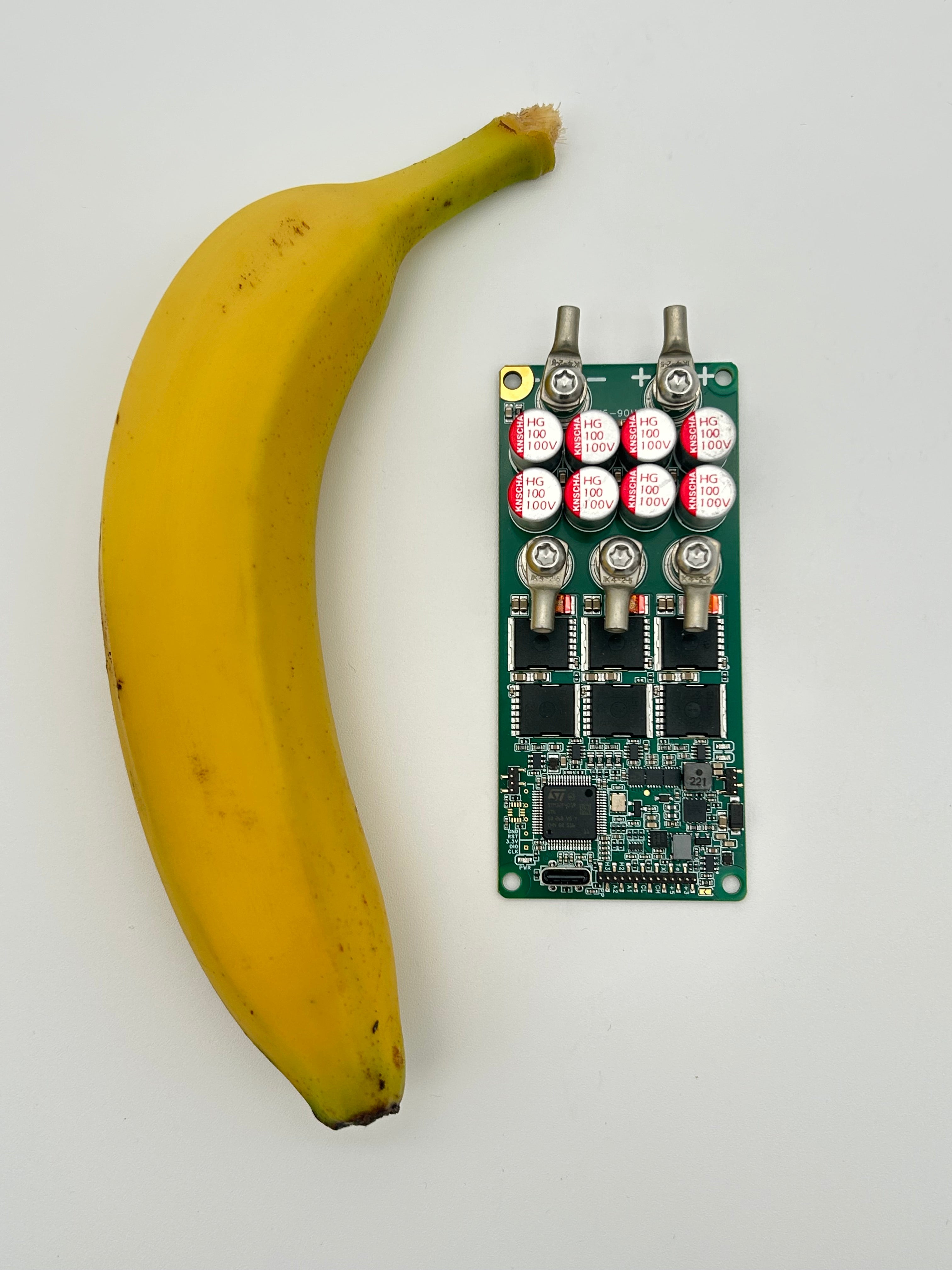

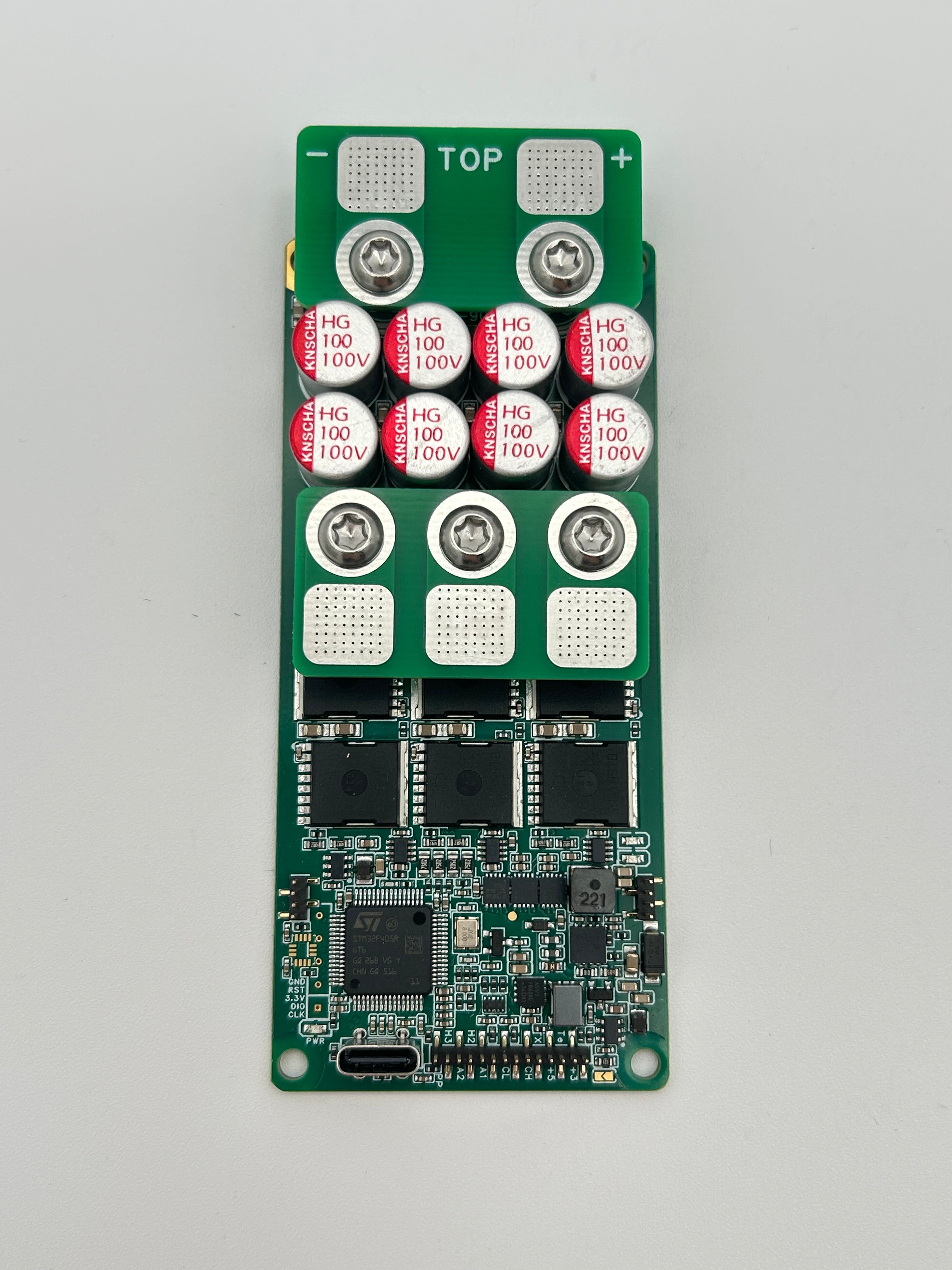

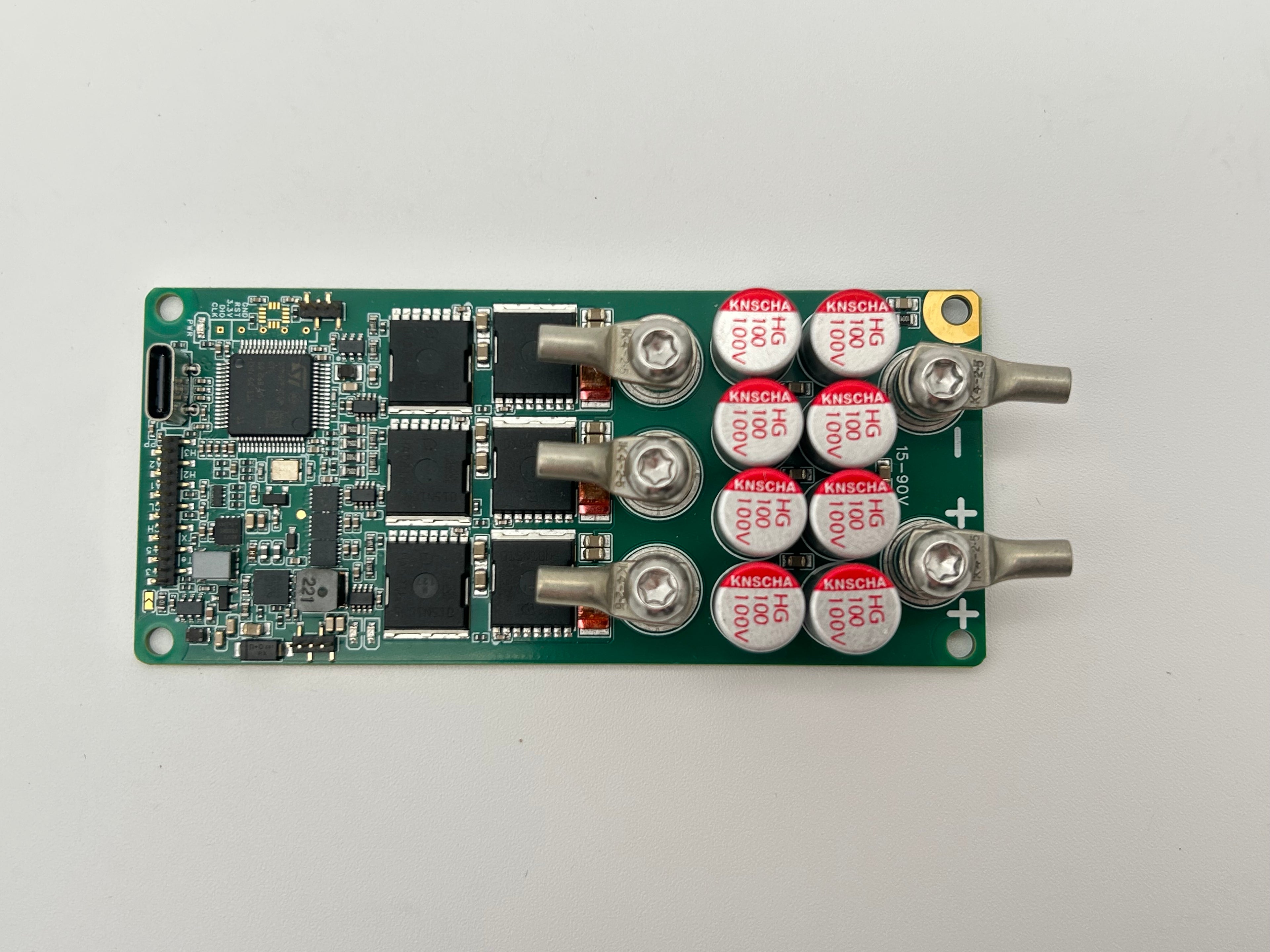

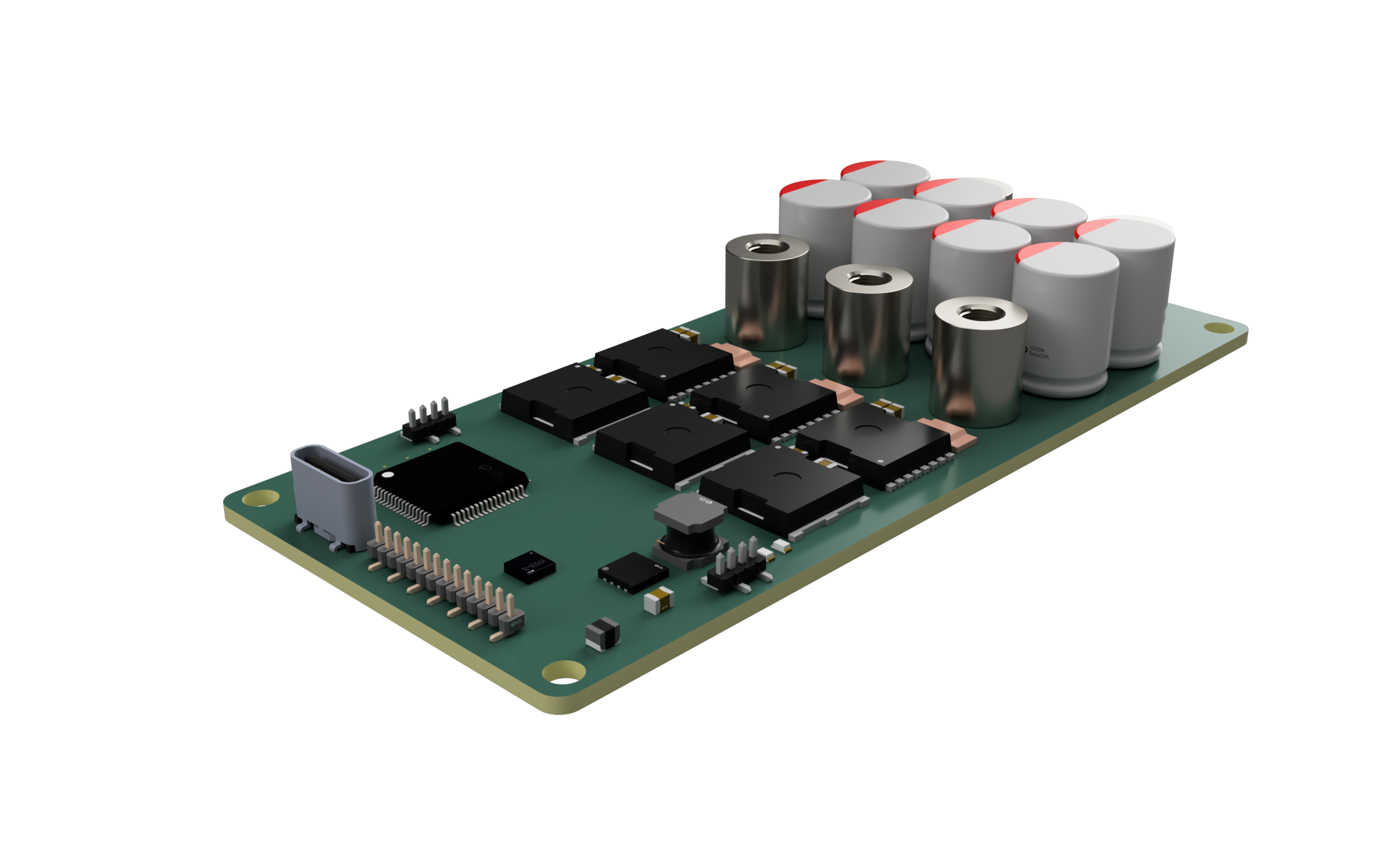

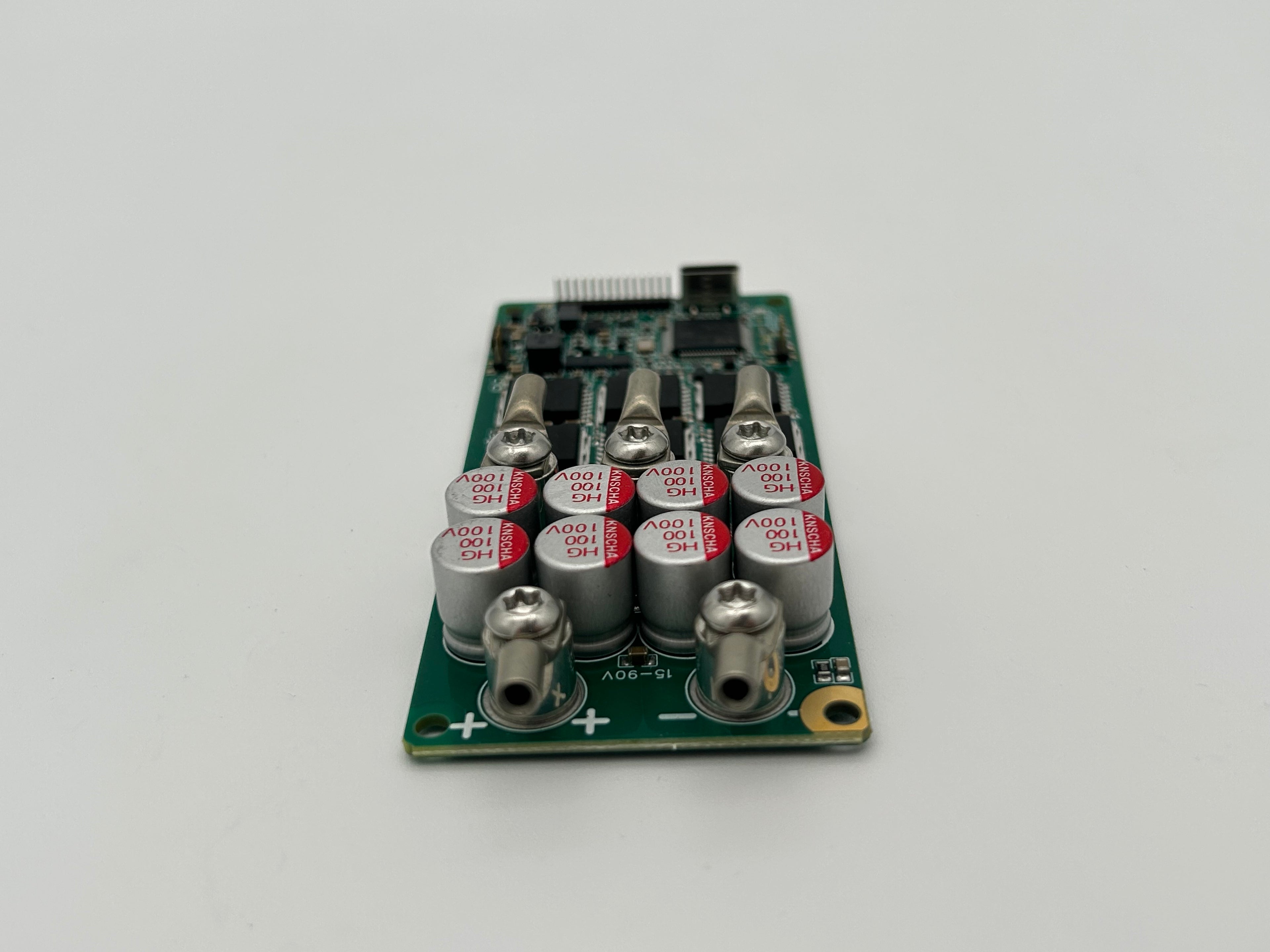

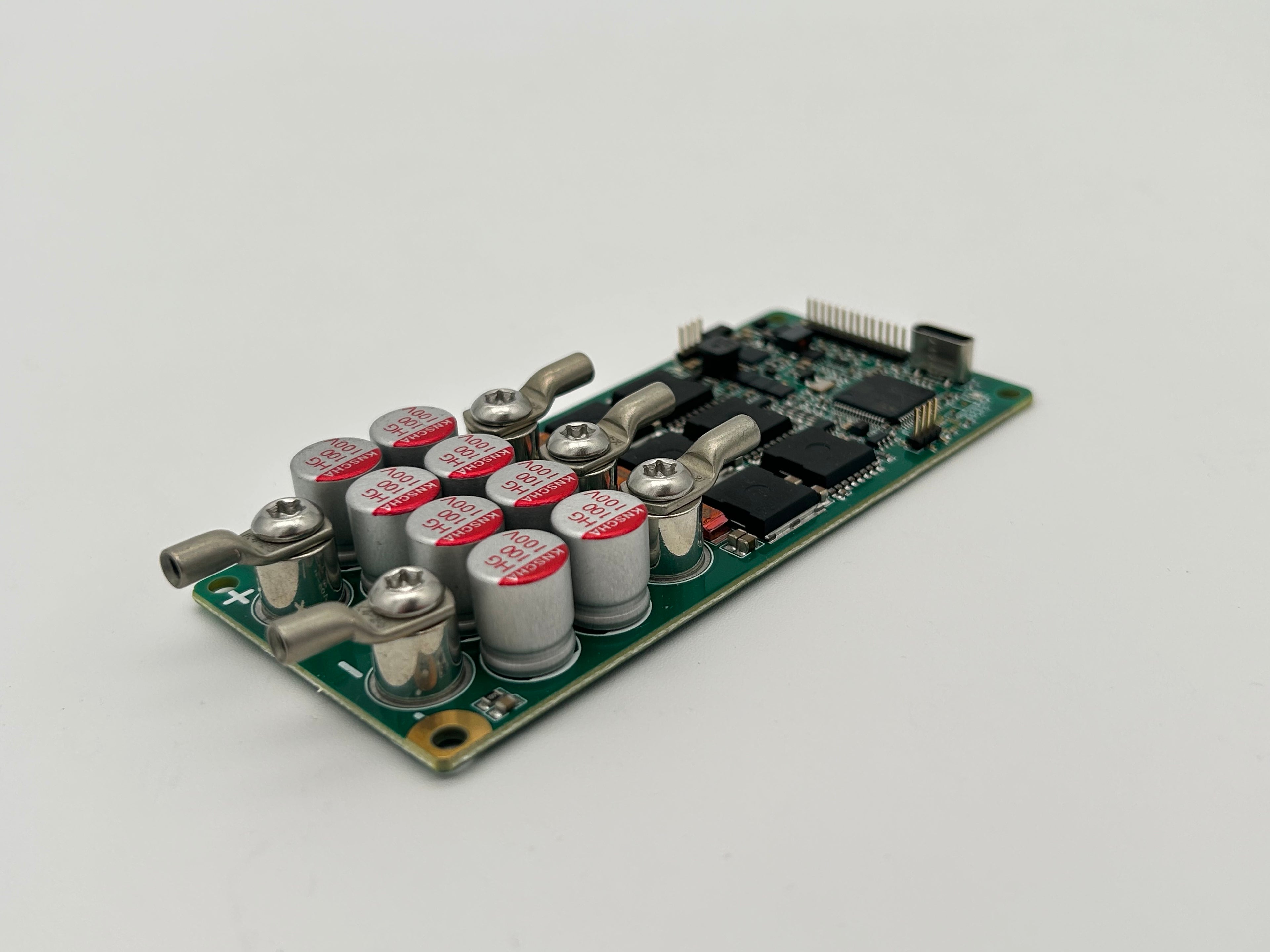

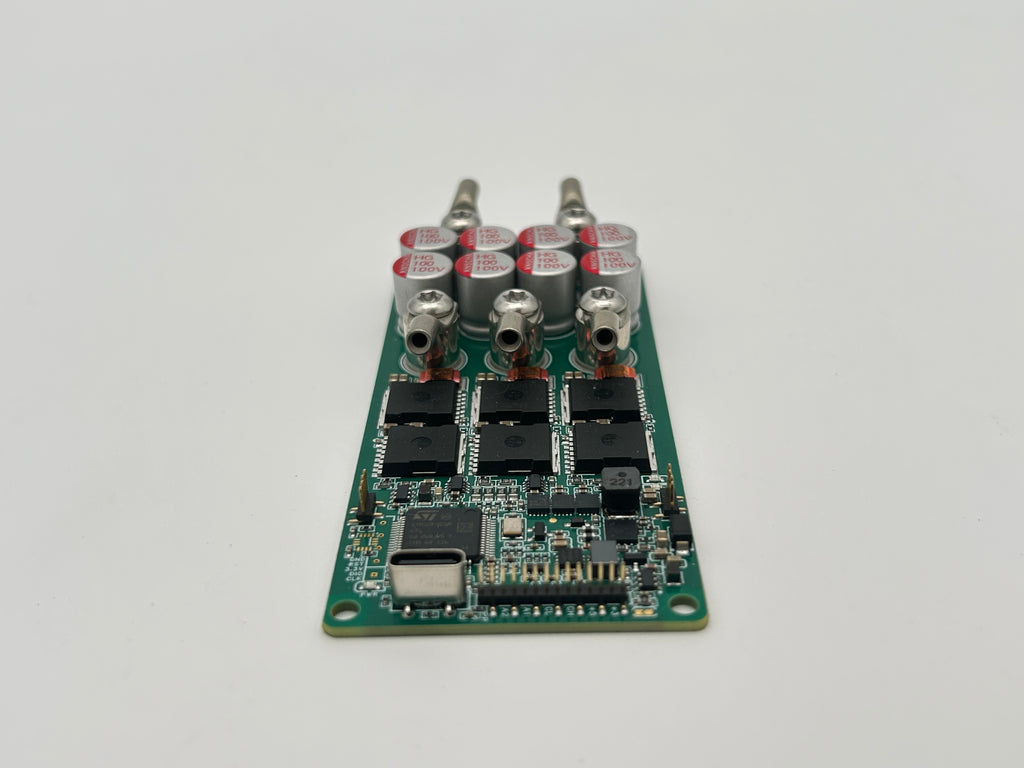

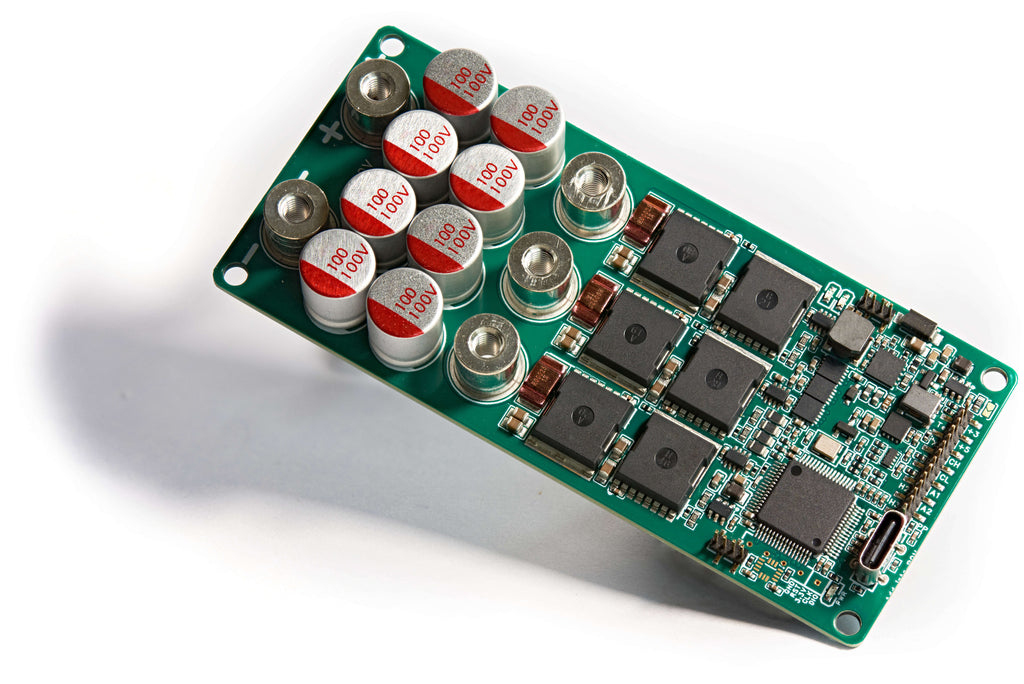

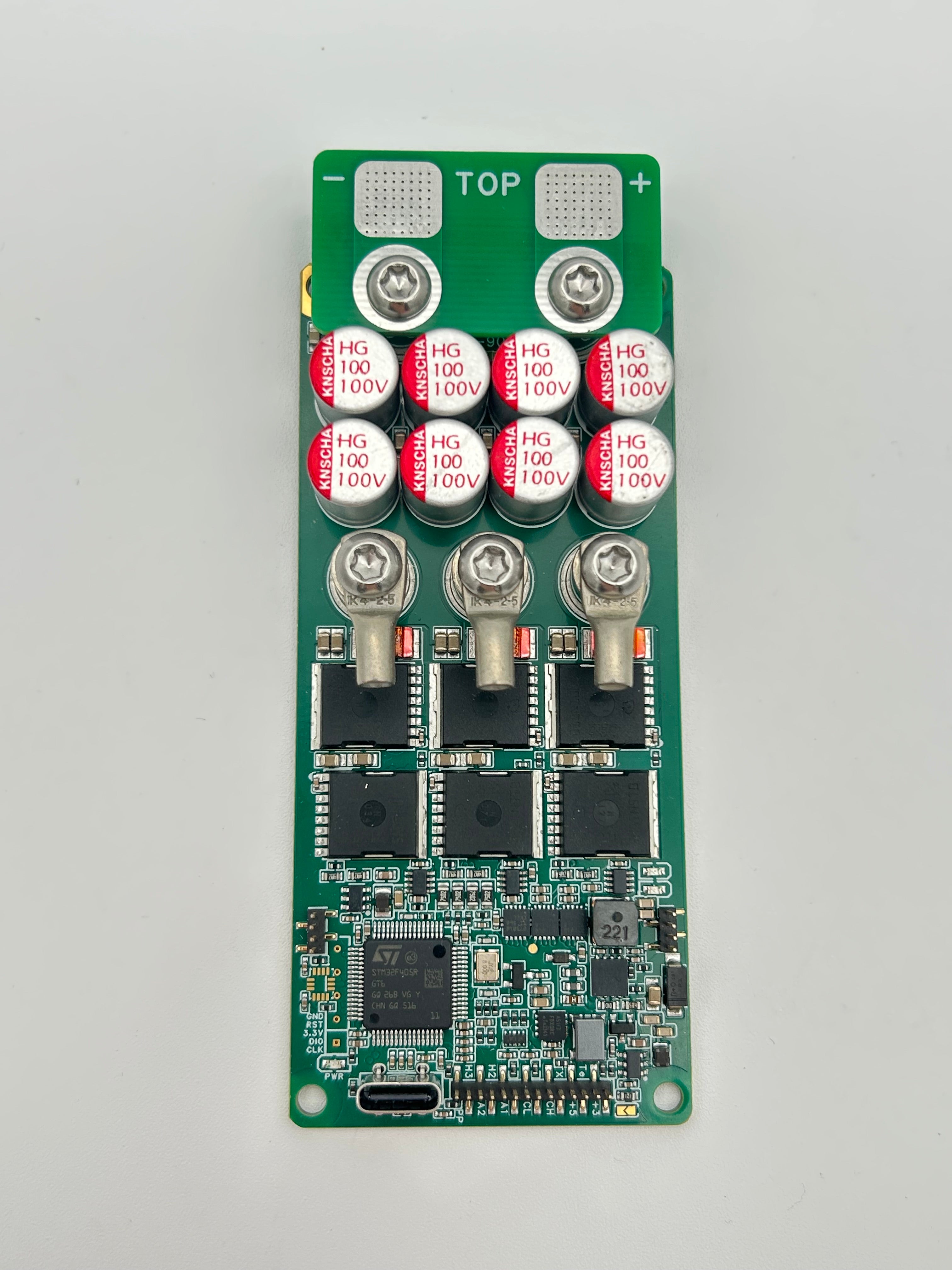

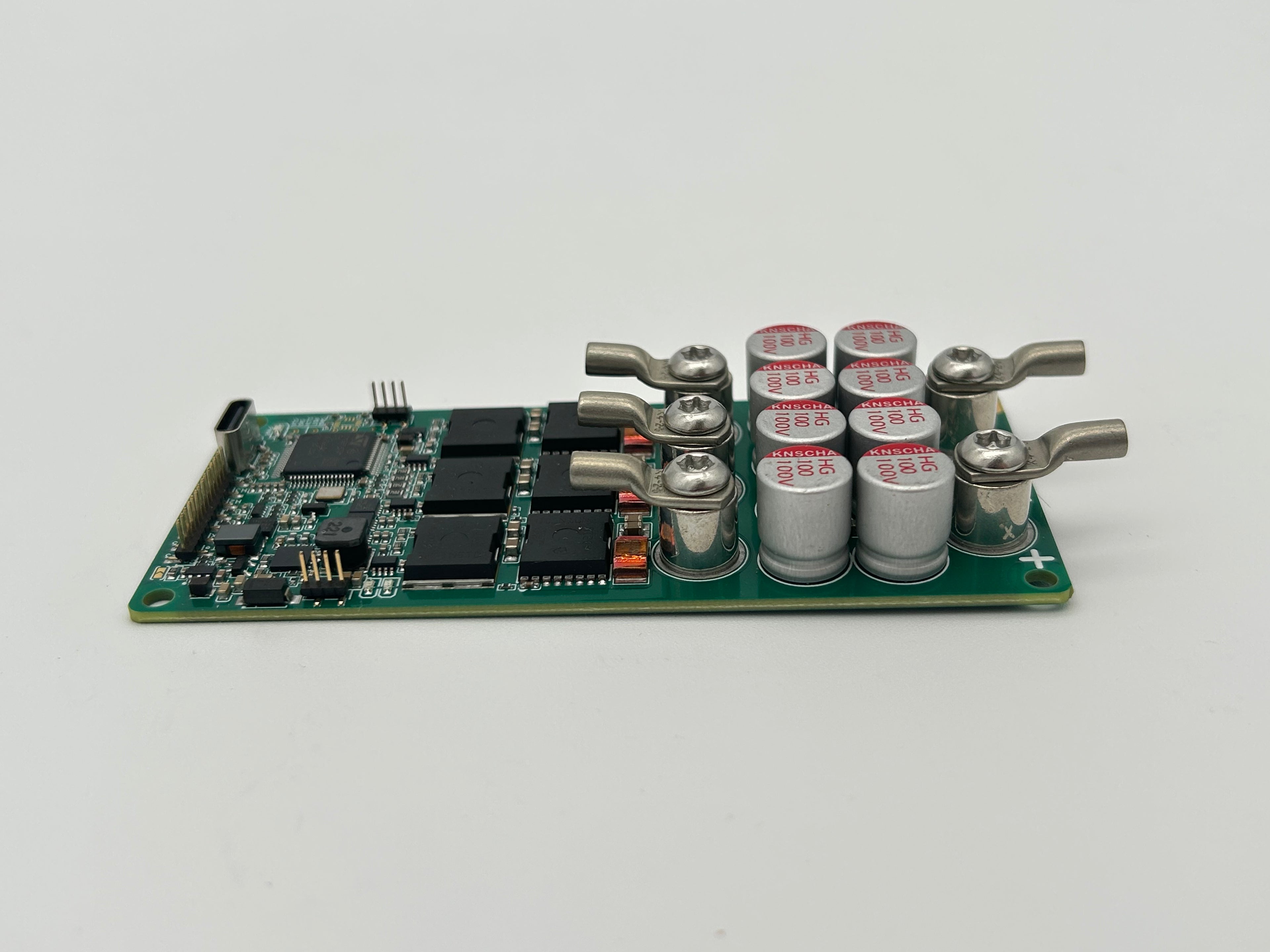

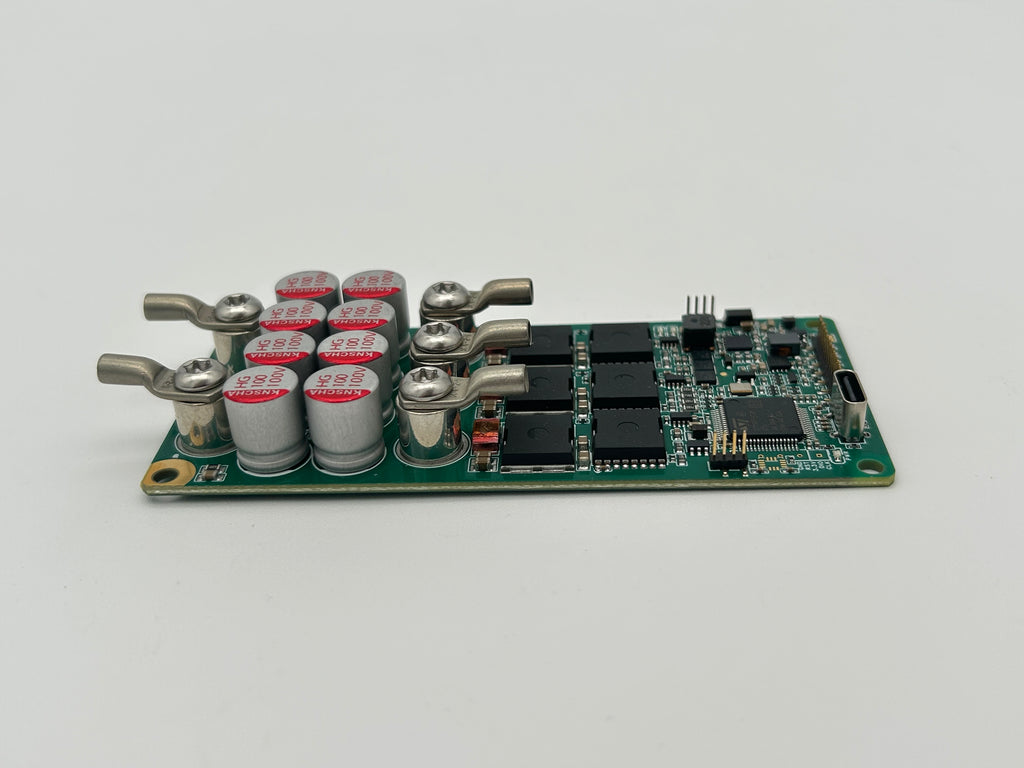

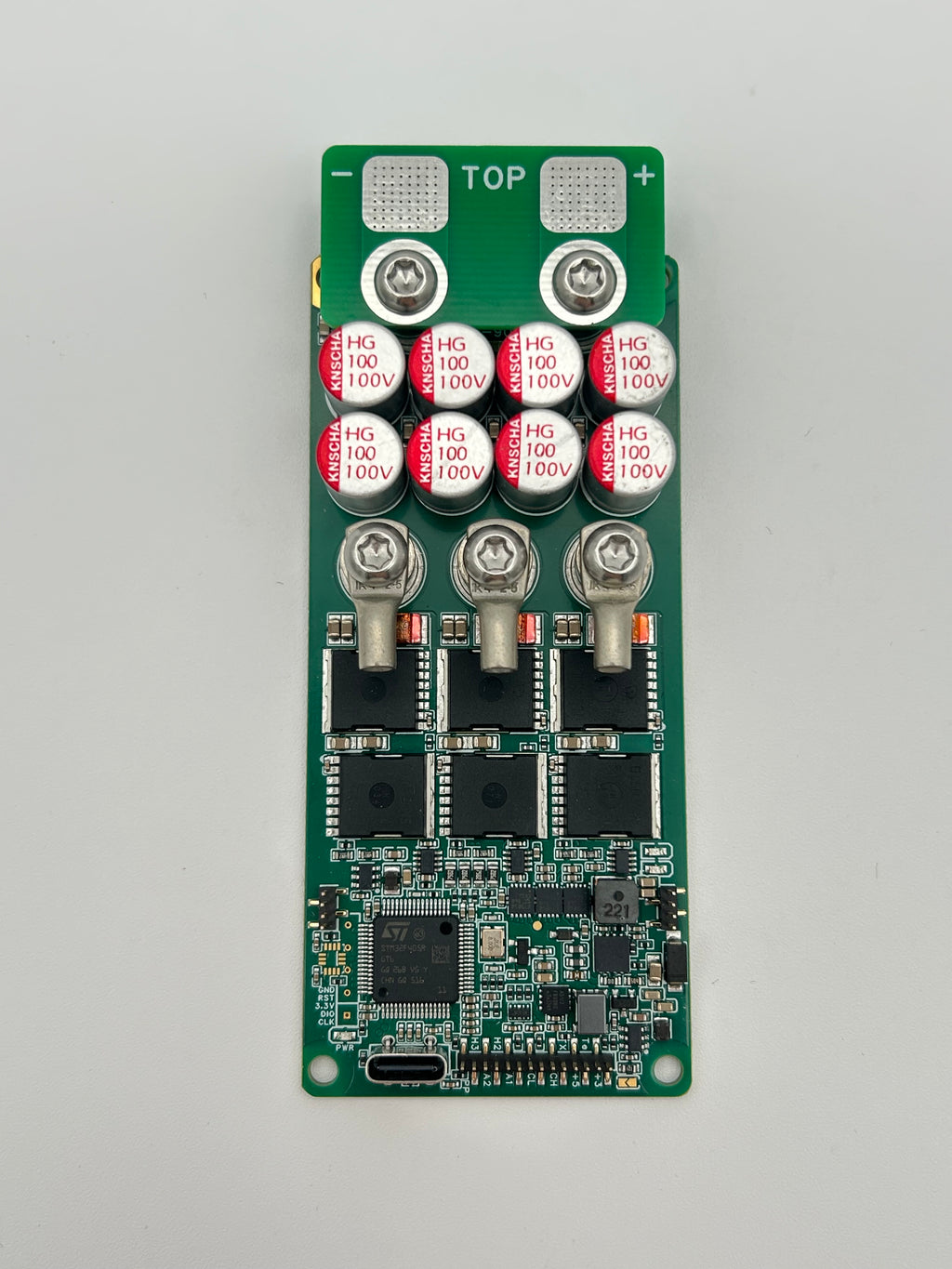

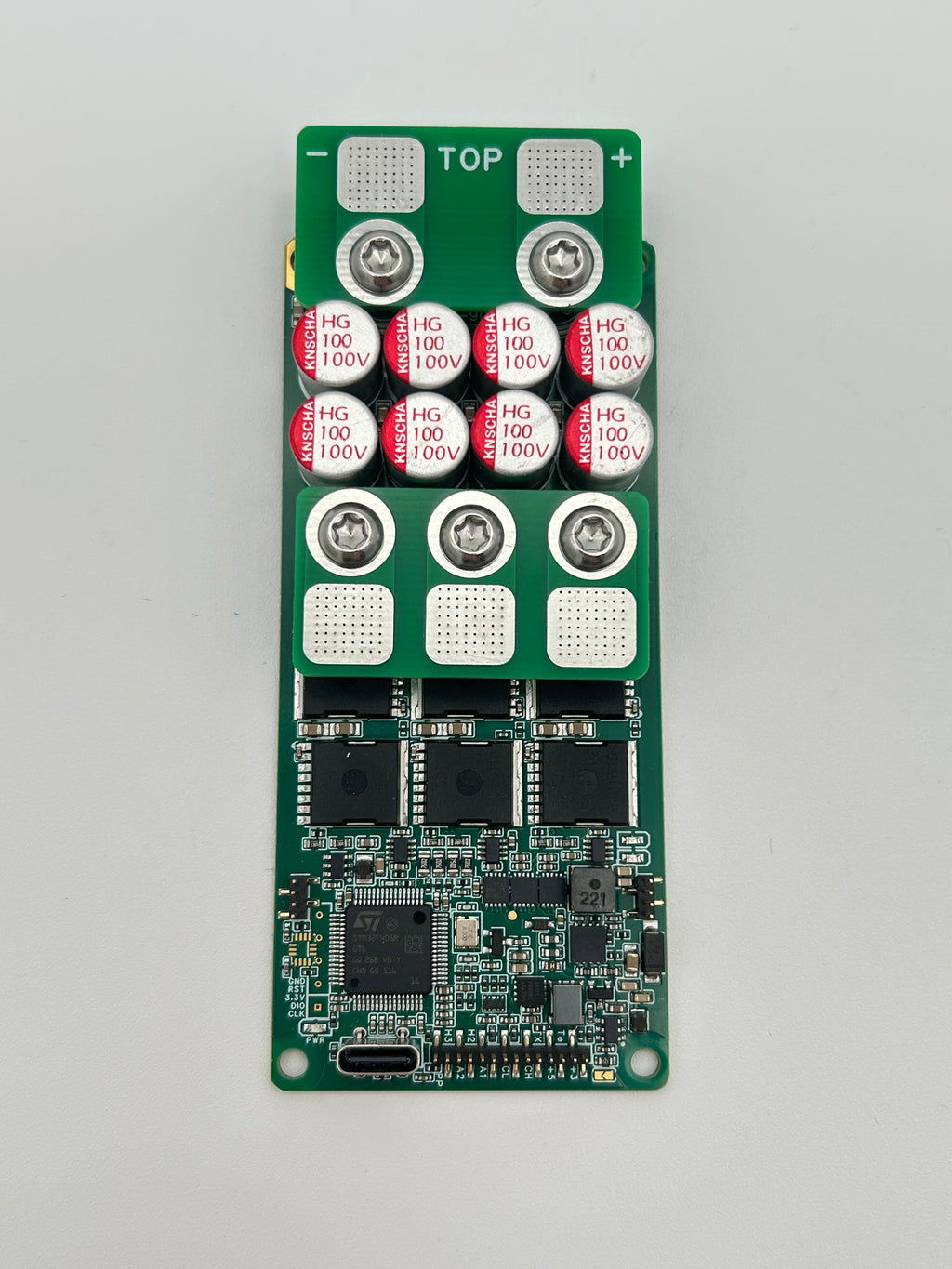

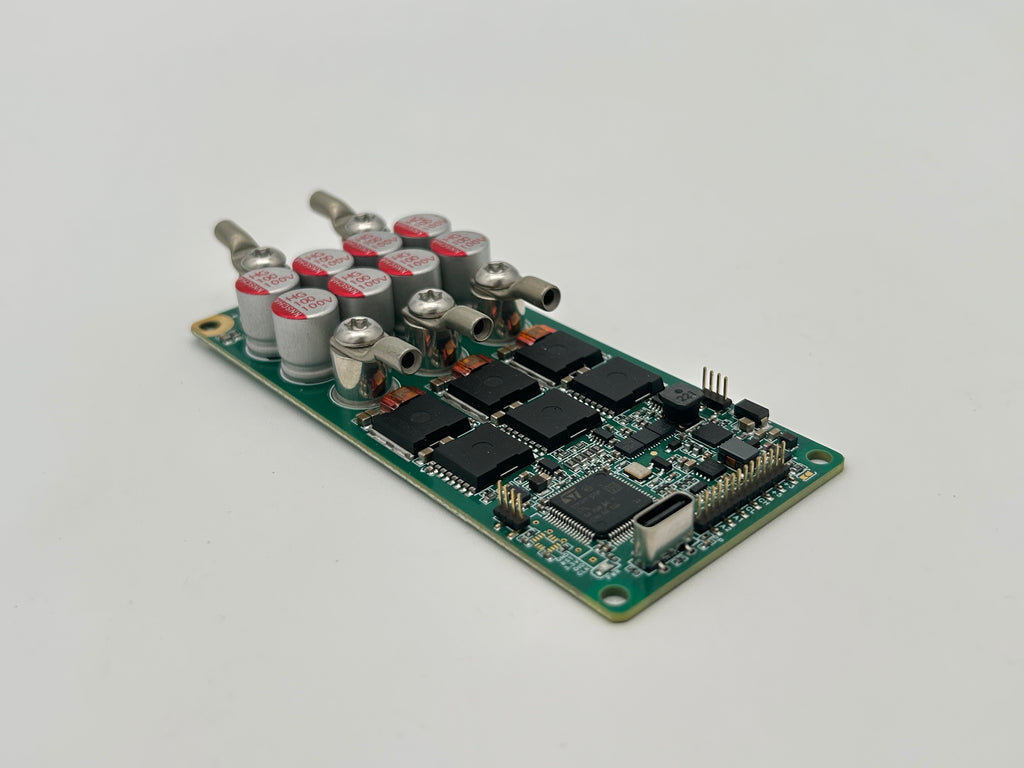

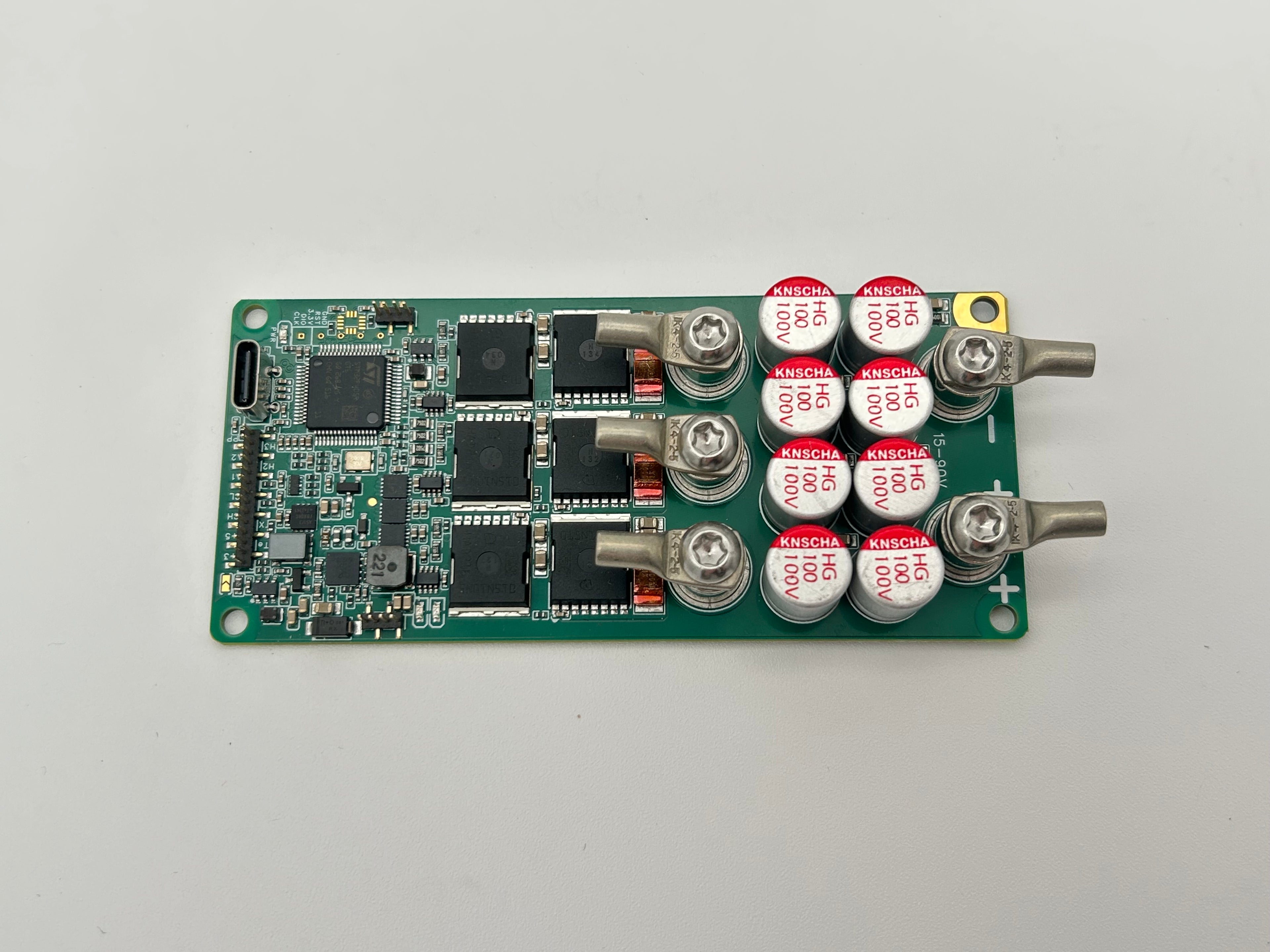

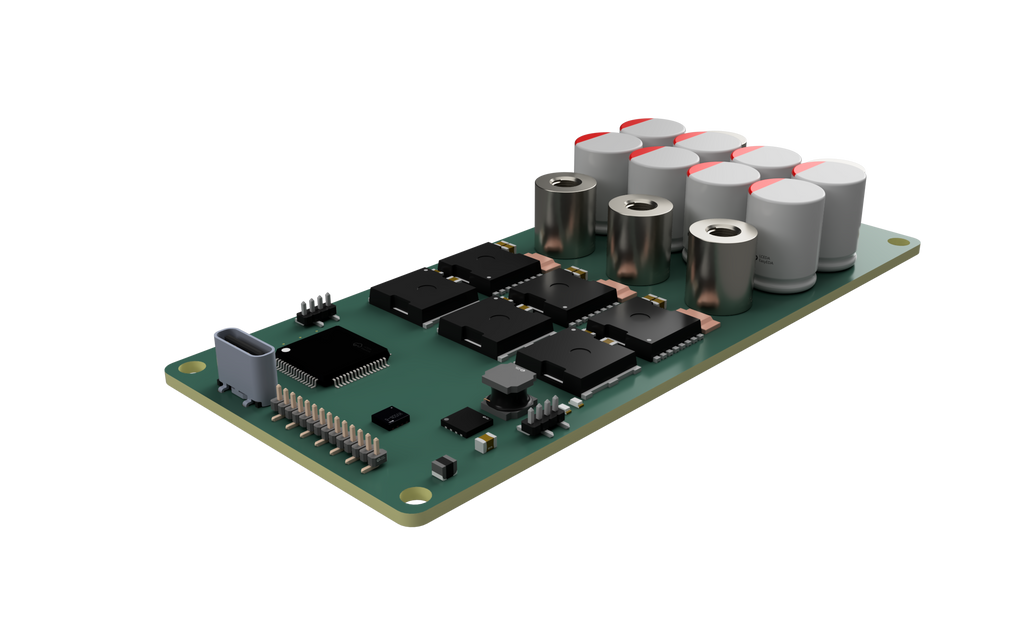

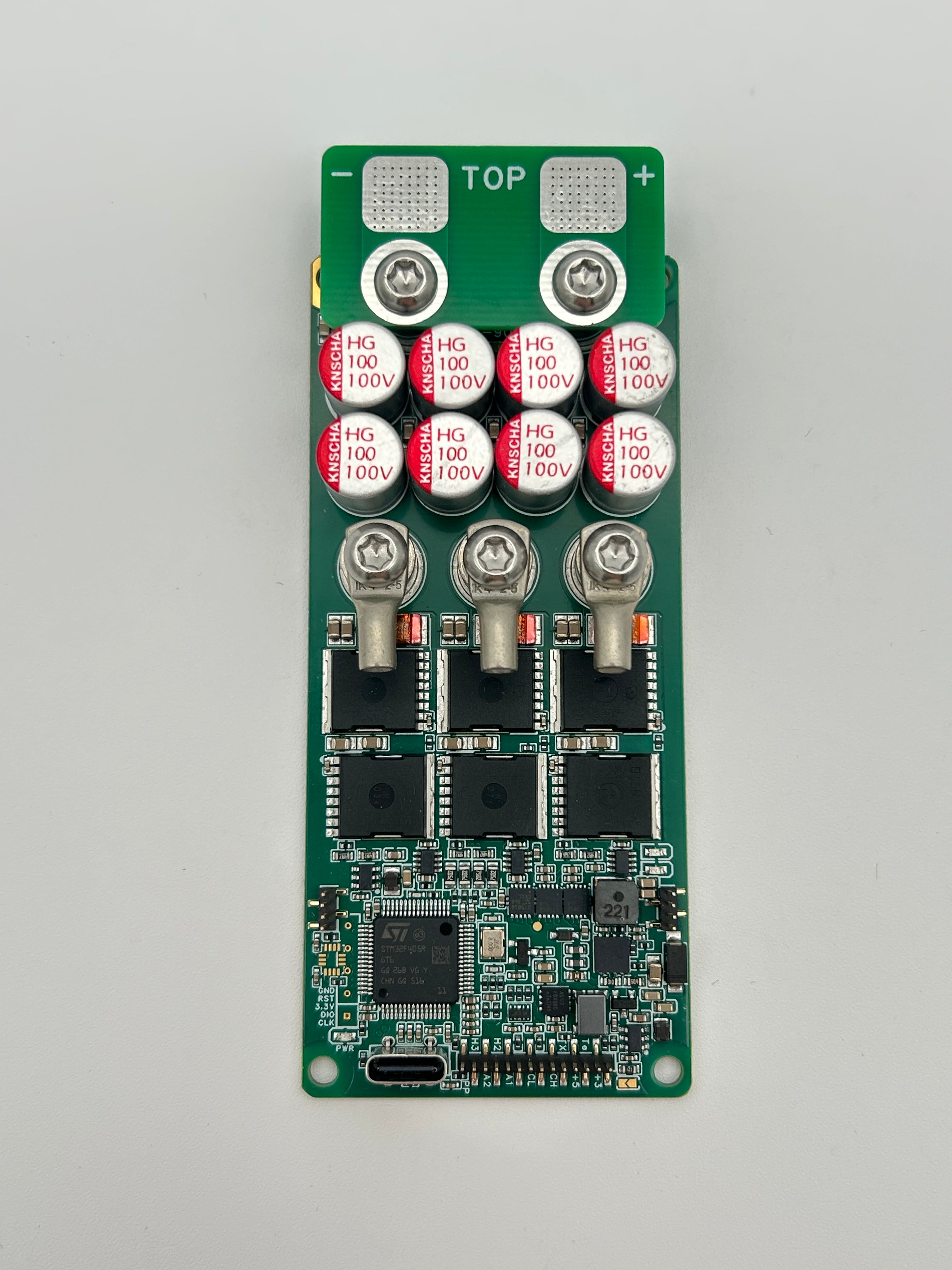

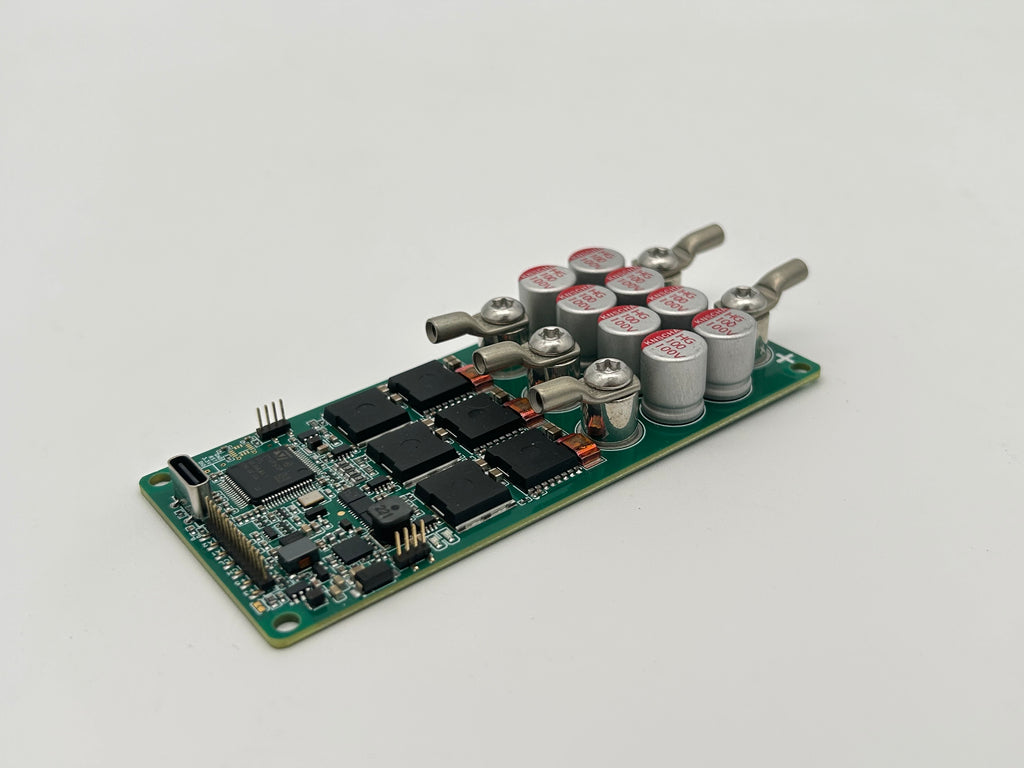

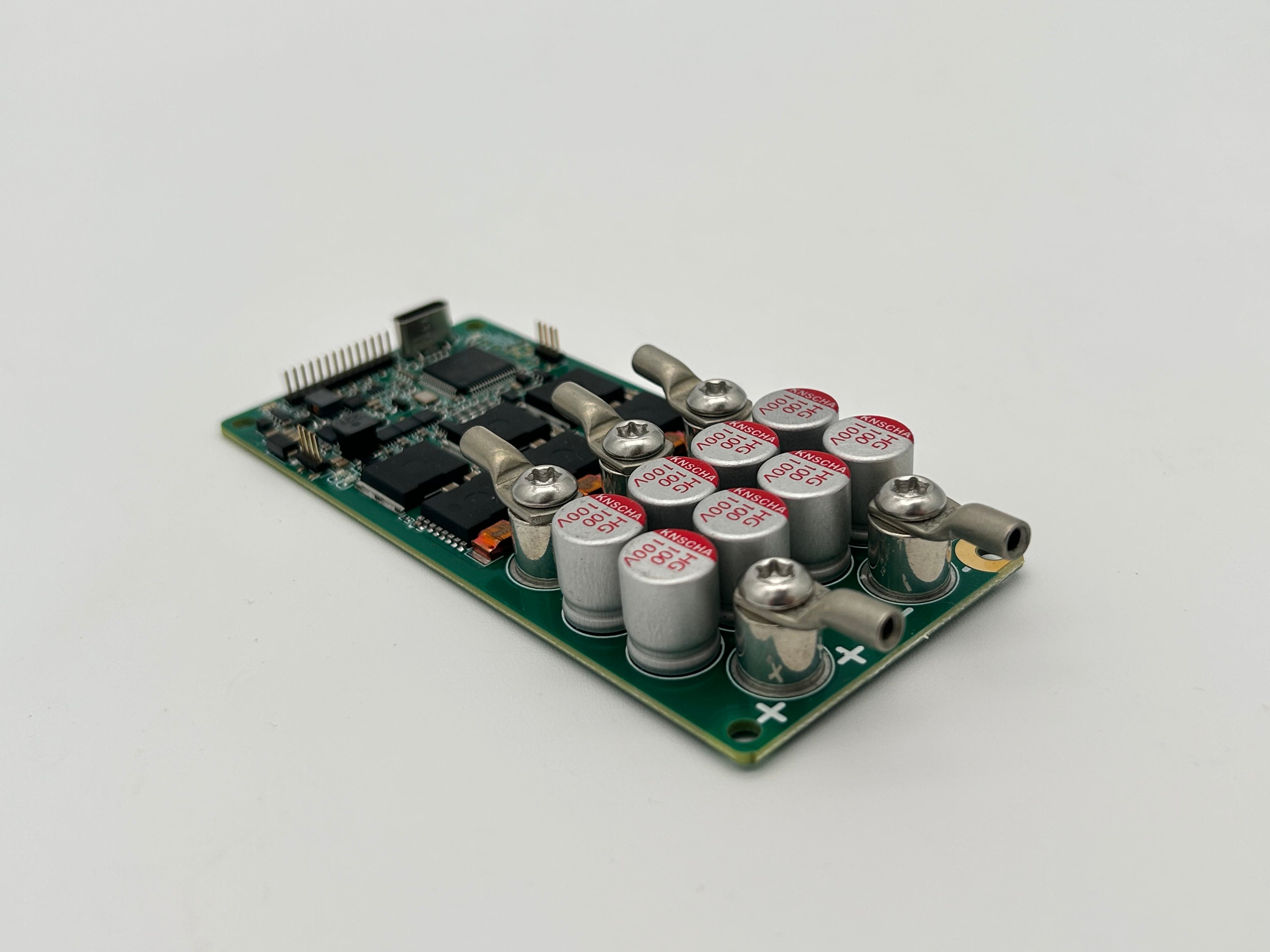

The M-Neo is the enhanced version of the M-Classic.

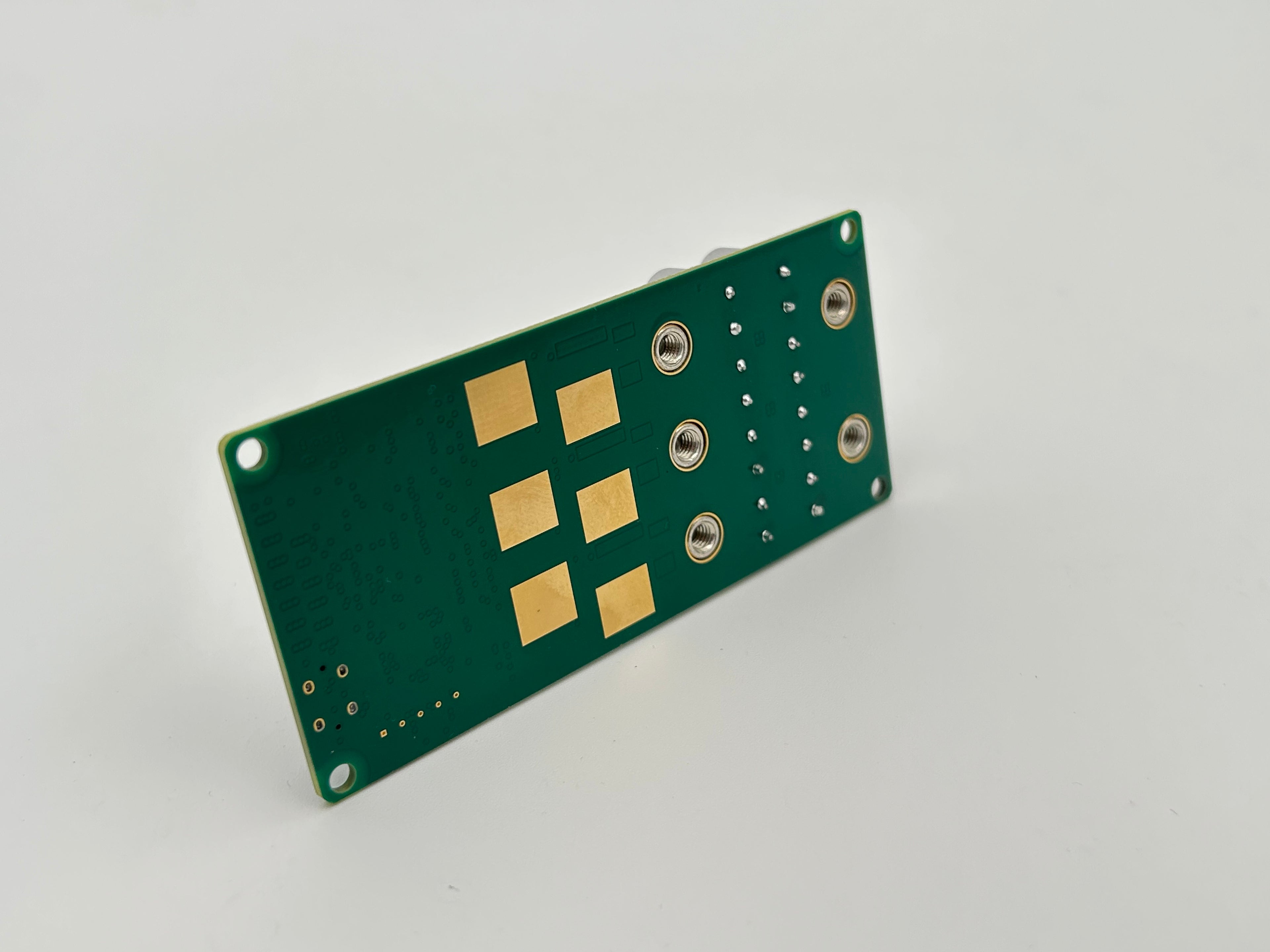

It features the same core ideas as the M-Classic regarding one sided PCB and proven layout. These are enhanced with many additions like phase shunts, a higher maximum voltage and a higher maximum current.

It is also noteworthy that the M-Neo has mounting holes in each corner to make mounting even easier. No support frame is needed. Have a look at the highlights to find out more!

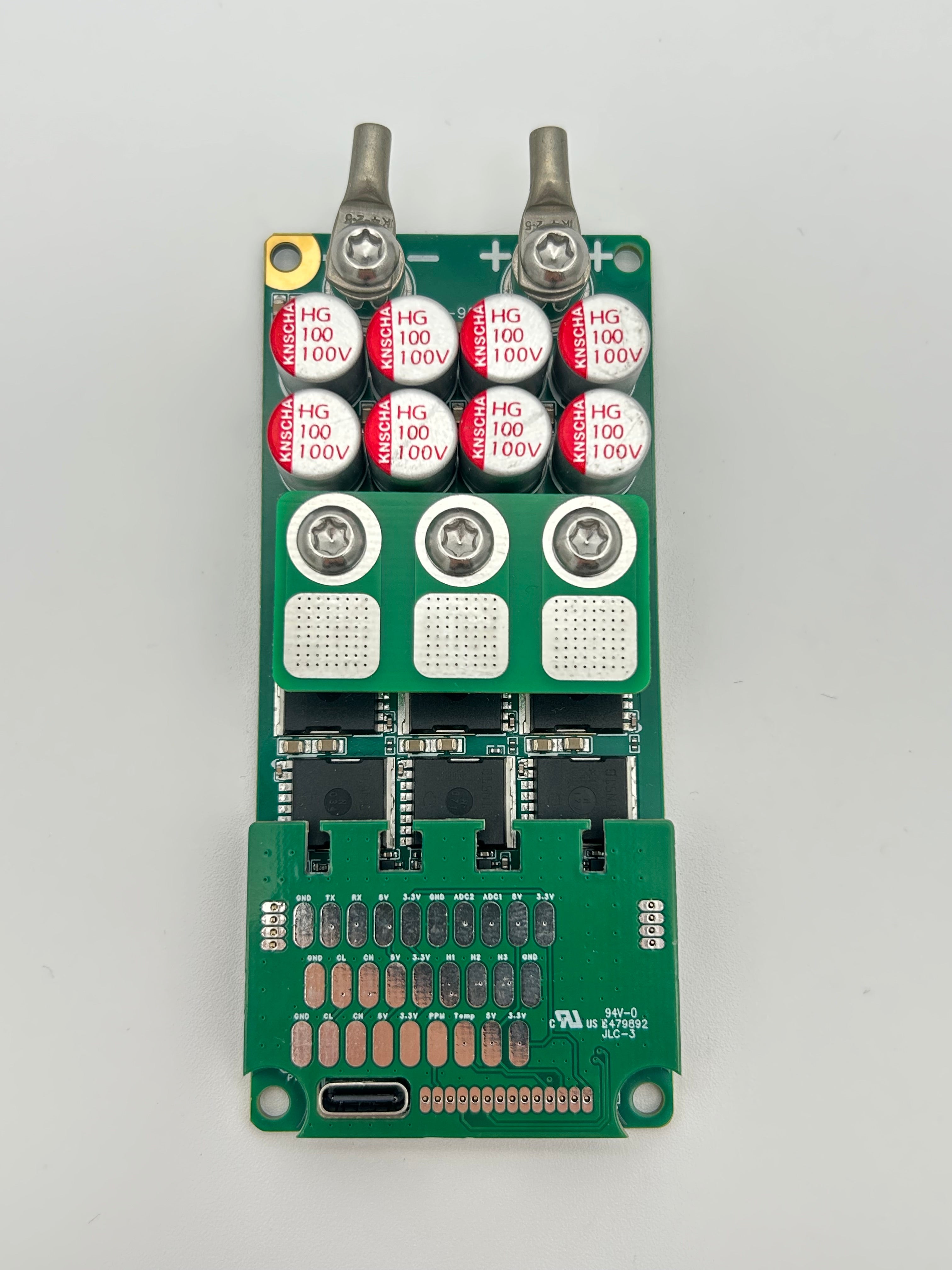

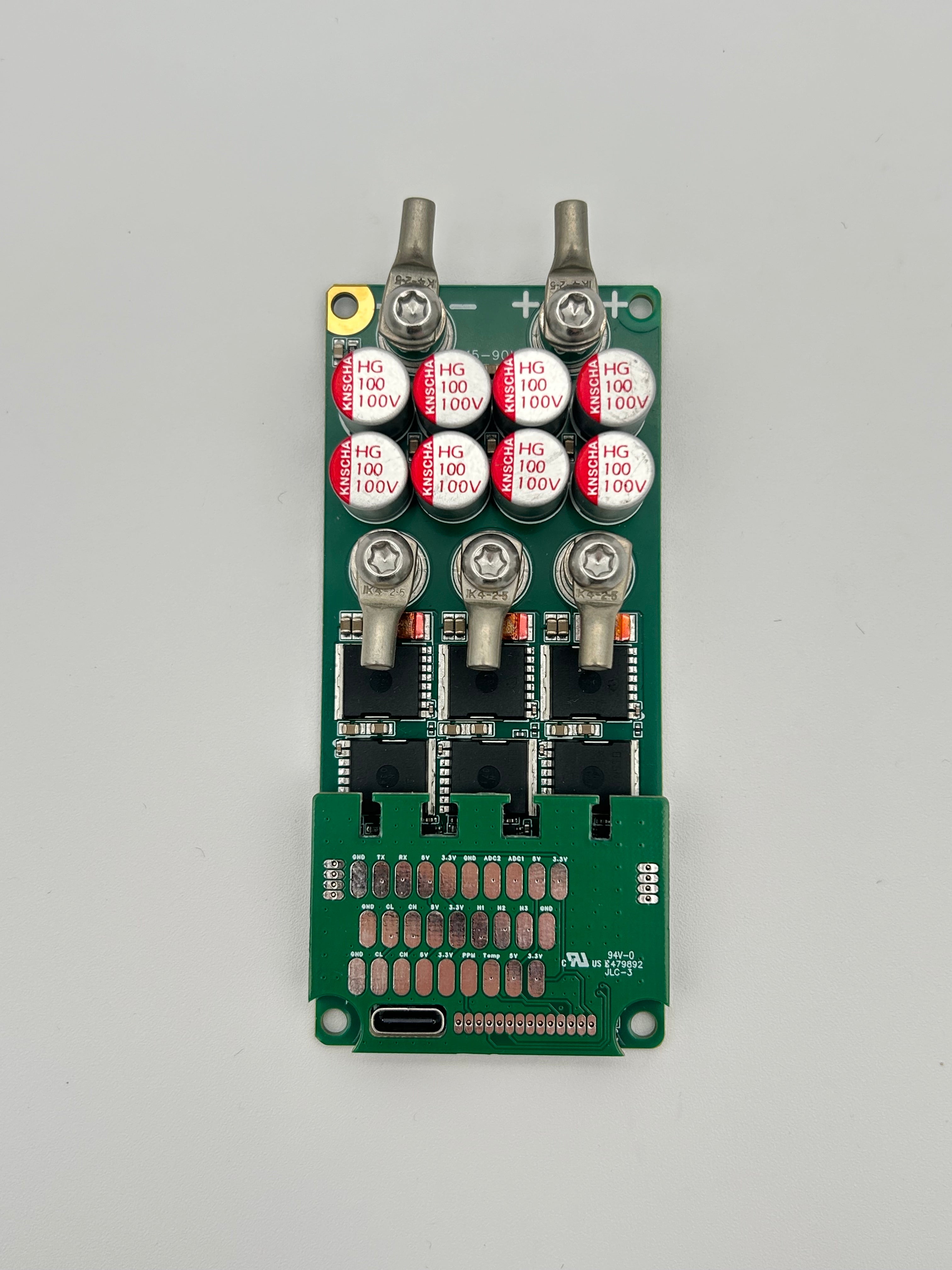

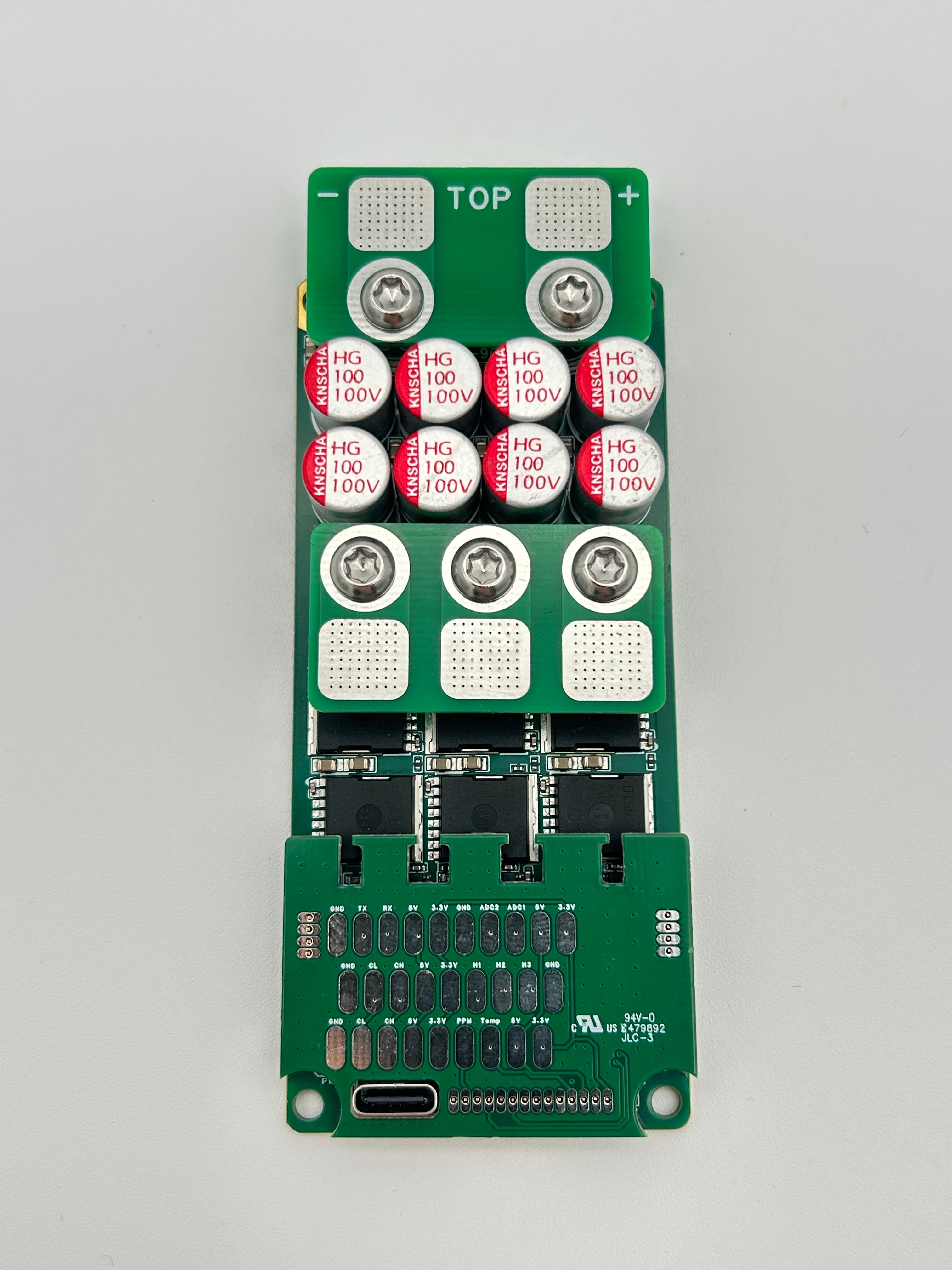

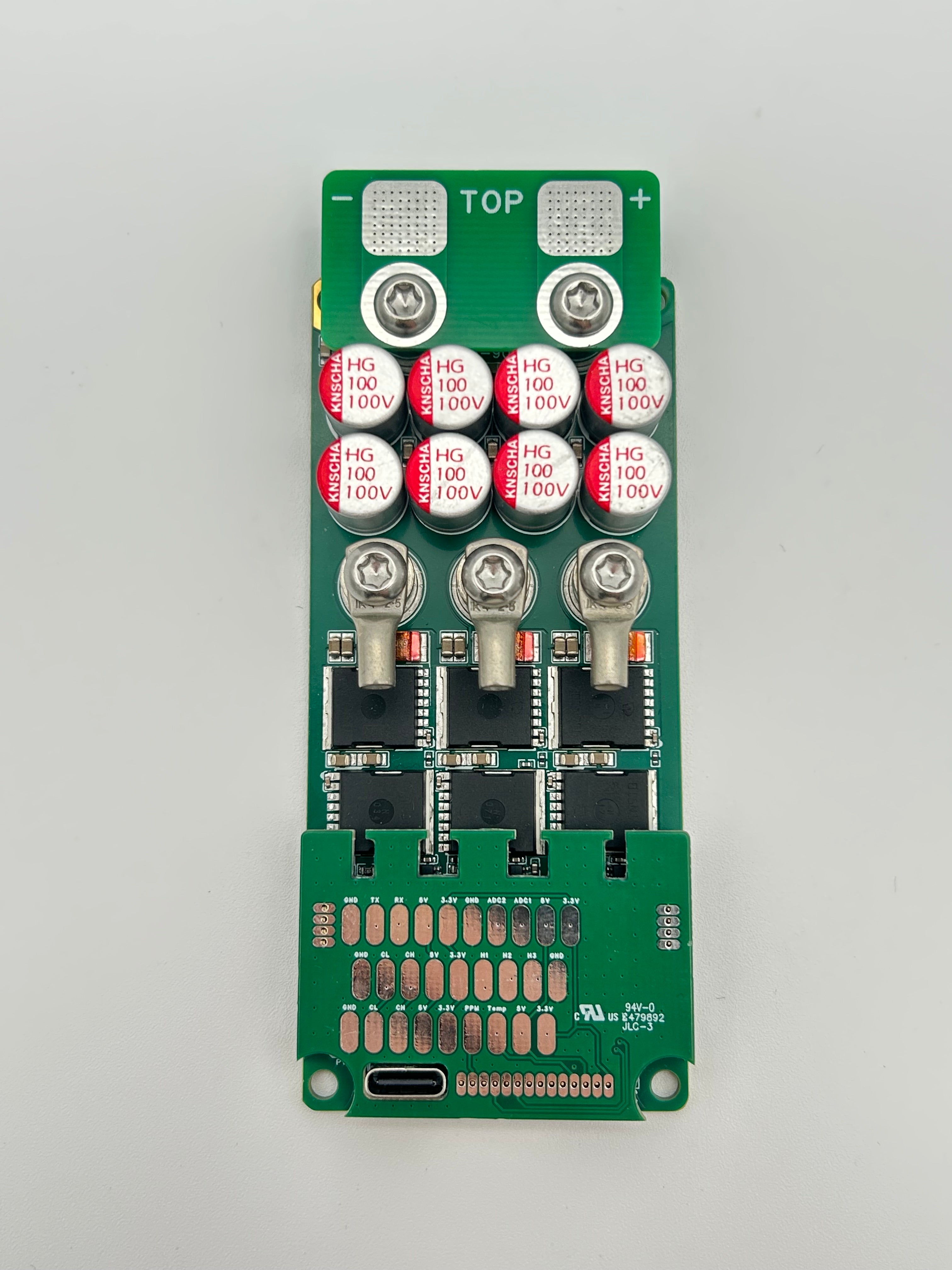

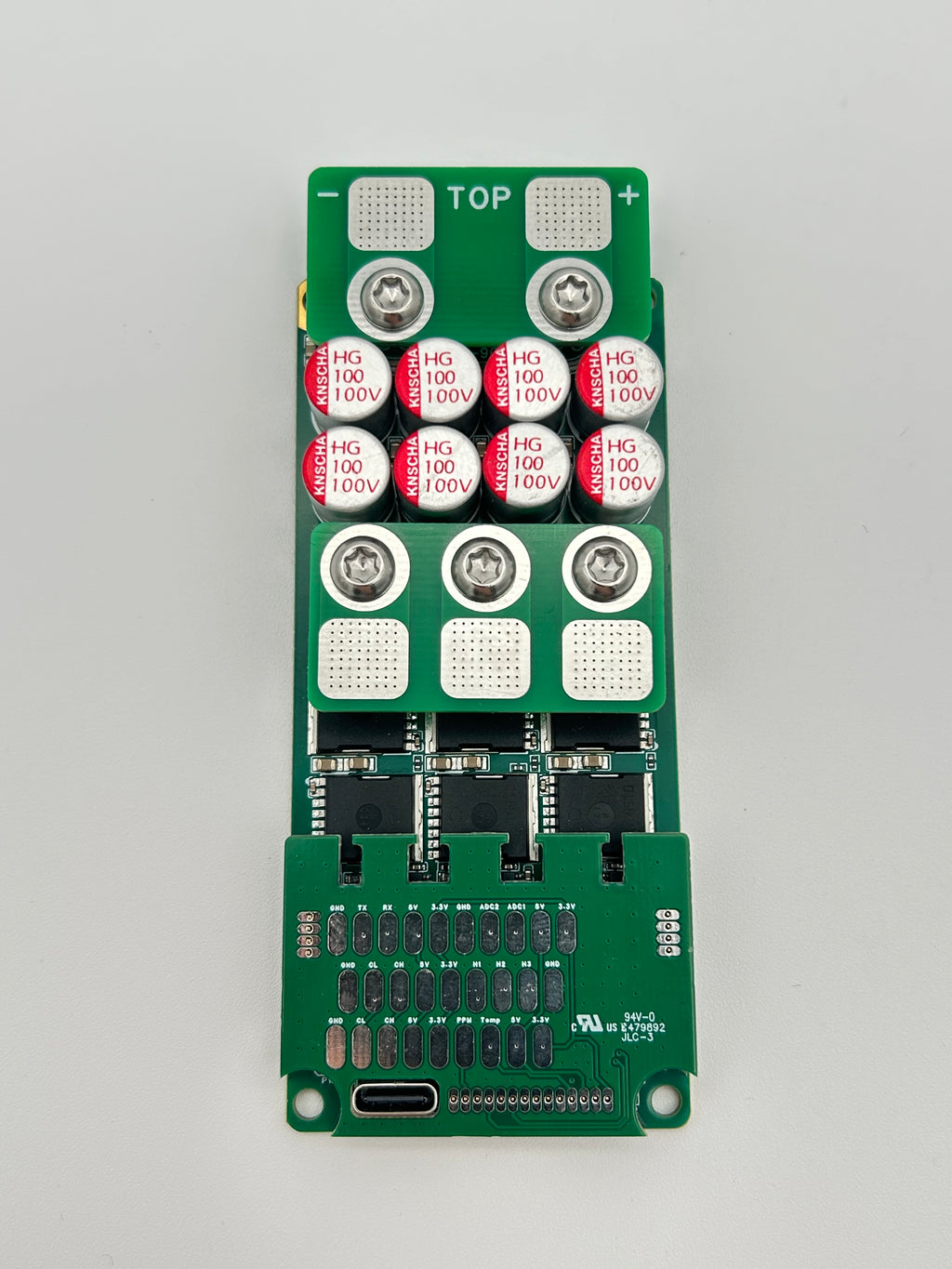

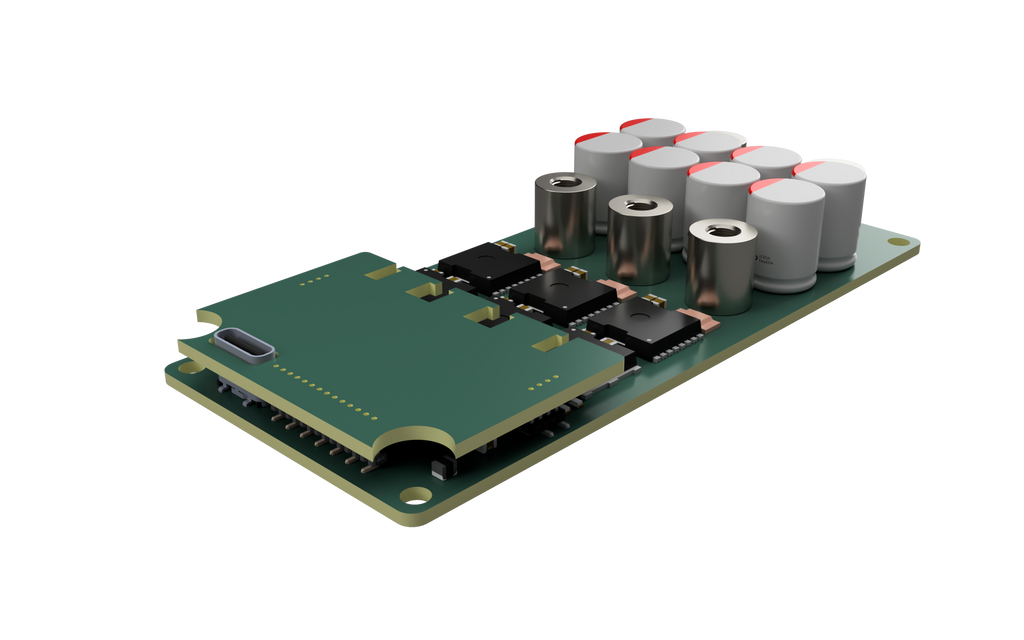

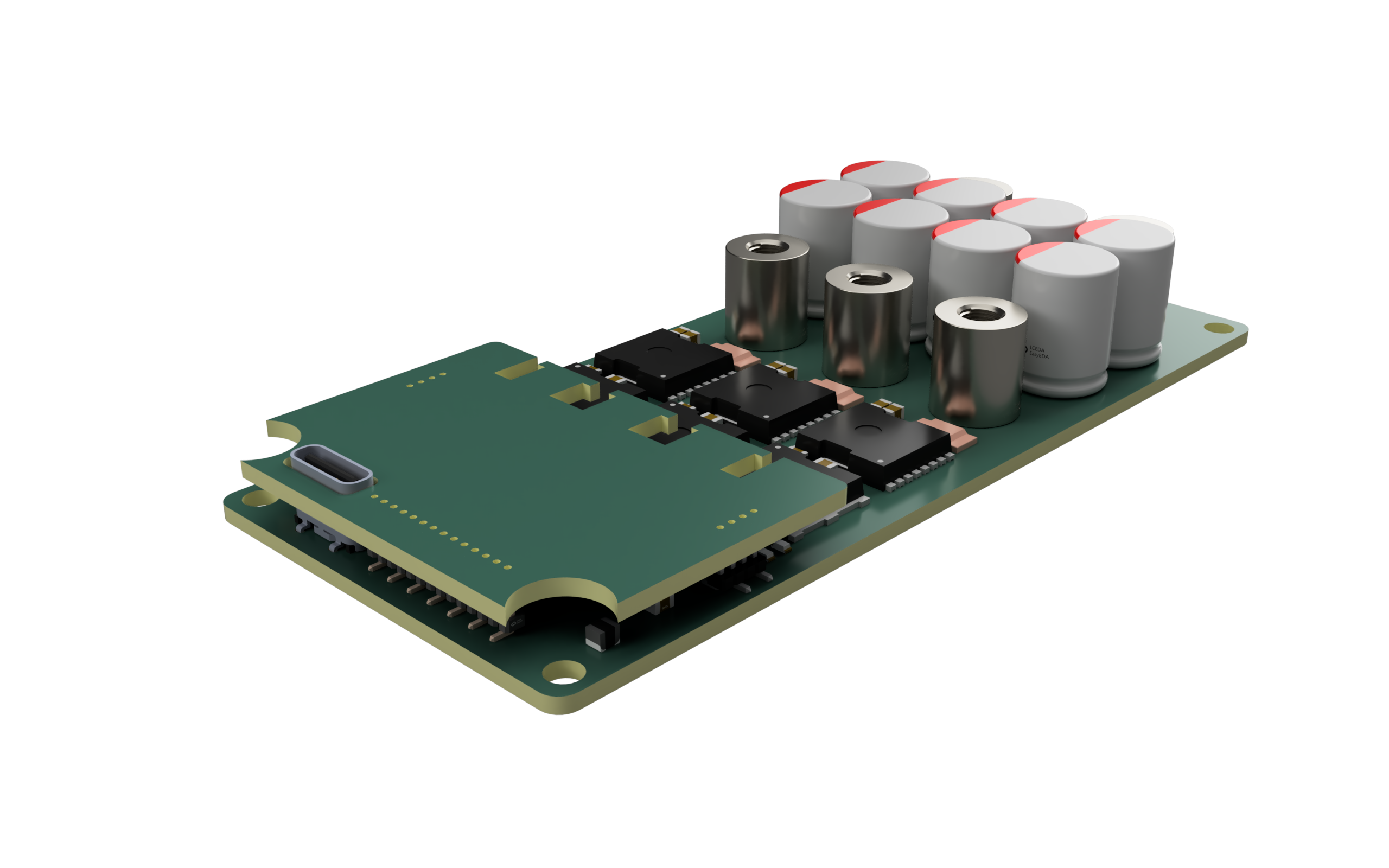

For signal interfacing, either a breakout PCB or a custom plug board can be used (see Add-Ons).

If your project needs a custom signal interface board, feel free to contact us. Also, the pinout is provided in the product info sheet.

In stock

Volume Pricing

For higher quantities, we grant volume discounts:

Quantity	Price each
1+	$270.00
10+	$199.00
100+	$179.00

Technical Information

What do these numbers mean?

Specification	Value
General Information
Dimensions [mm] Note: These are reference values. For systems integration, please download the 3D model	45 x 100 x 15
Weight [g]	45.0
Mounting Holes	4 x 3.2mm
Firmware	VESC®
Connectivity & Interfaces
Connectors	JST-GH, M4 Screw Terminals, Solderpads (version dependend)
Supported Sensors	Hall, ABI, SinCos, SPI
Logic & Control
Logic output voltage [V]	5.0
Logic supply current [A]	0.5
Electrical Parameters
Minimum input voltage [V]	13.0
Maximum input voltage [V]	84.0
Maximum battery current [A]	140.0
Maximum motor peak current [A]	200.0
Maximum duty cycle [%]	97.0
Current sensor type	Phase Shunts
